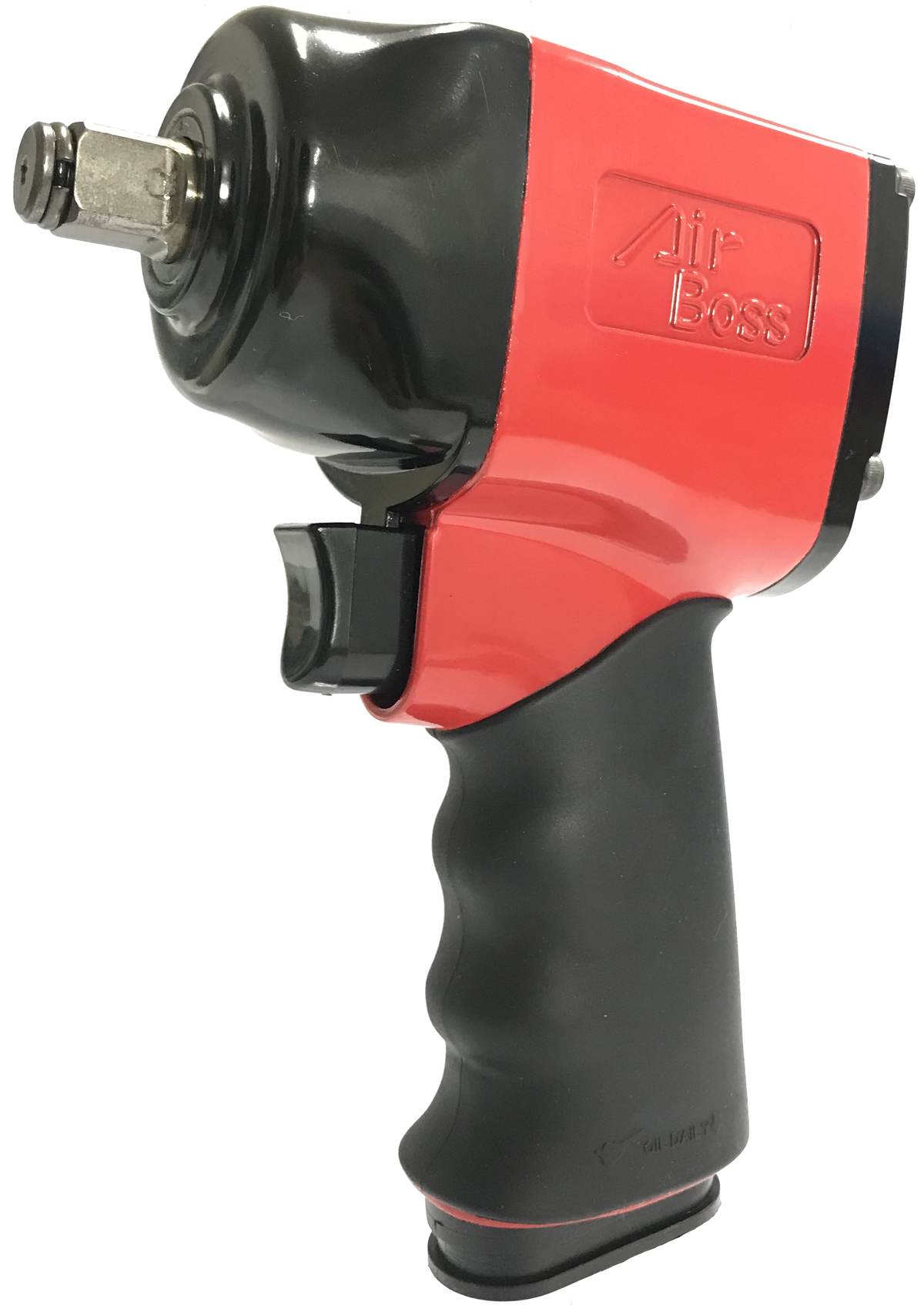

AIRBOSS® AB-170P 1/2" Stubby Air Impact Wrench
SKU AB-170P
Type Air Impact Wrench
Contact for Availability
Contact Us
At a glance
Key Specifications
Performance and fit information for this exact model.
Max Torque
375 ft·lb
Drive Size
1/2"
Free Speed
7600 rpm
Weight
3.1 lb
Air Inlet
1/4"
Hammer Mechanism
Twin Hammer
18-month limited warranty. See full warranty terms.
Product Details
Product Highlights
Part of the AIRBOSS AB Auto Repair line — a Twin Hammer stubby air impact wrench. At just 4.8 inches long it works inside engine bays, wheel wells and other tight clearances where full-size wrenches will not fit. Built for tire and general automotive service, and backed by an 18-month limited warranty.
Specifications
- Drive: 1/2" square
- Mechanism: Twin Hammer
- Max torque: 375 ft-lbs (510 N·m)
- Working torque: 25–225 ft-lbs
- Free speed: 7,600 RPM
- Overall length: 4.8" (122 mm)
- Weight: 3.1 lbs (1.4 kg)
- Air consumption: 10.6 CFM
- Air inlet: 1/4" NPT
- Recommended hose: 3/8" (10 mm)
- Working pressure: 90 PSI
View all specifications 14 details
Performance
- Max Torque
- 375 ft·lb
- Free Speed
- 7600 rpm
Tool & Capacity
- Drive Size
- 1/2"
- Hammer Mechanism
- Twin Hammer
- Bolt Capacity
- 15 mm
- Mechanism
- Twin Hammer
- Model
- AB-170P
- Product Type
- Air Impact Wrench
Air Requirements
- Air Inlet
- 1/4"
- Air Consumption
- 0.3 m³/min
- Air Pressure
- 6.3 kg/cm²
- Recommended Hose
- 10 mm
Dimensions
- Weight
- 3.1 lb
- Overall Length
- 122 mm
Parts & Service
Parts for AB-170P
Open the model-specific exploded view to identify the part number, then contact us for availability.
