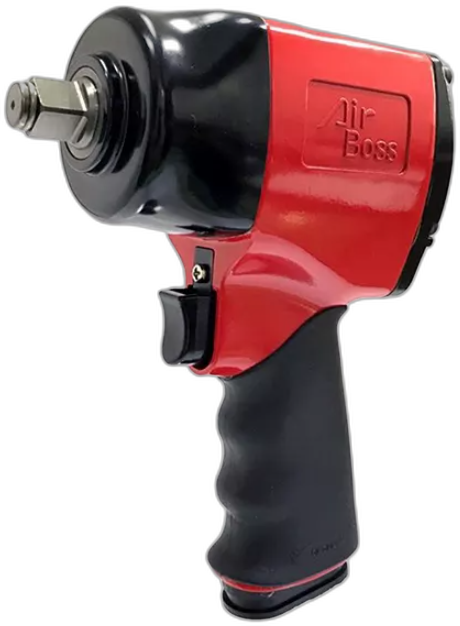

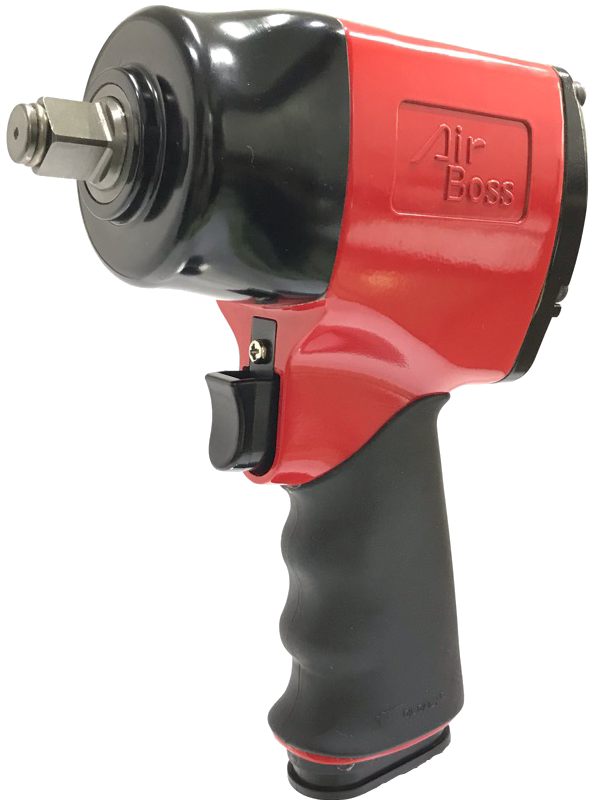

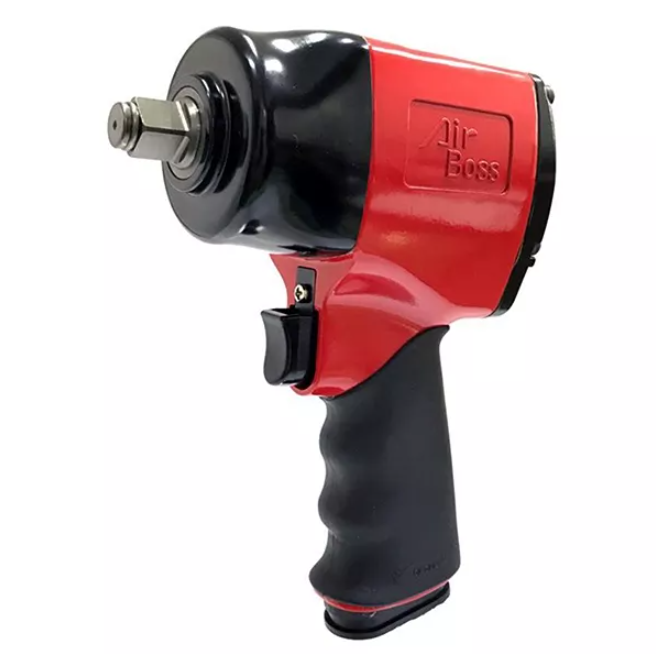

AIRBOSS® AB-190P Air Impact Wrench
SKU AB-190P
Type Air Impact Wrench
$181.99
Free shipping on orders US$99+ after discounts (contiguous U.S.). Shipping details
At a glance
Key Specifications
Performance and fit information for this exact model.
Max Torque
627 ft·lb
Drive Size
1/2"
Free Speed
7400 rpm
Weight
4.9 lb
Air Inlet
1/4"
Hammer Mechanism
Twin Hammer
18-month limited warranty. See full warranty terms.
Product Details
Product Highlights
Part of the AIRBOSS AB Auto Repair line — a Twin Hammer air impact wrench built for tire rotation, suspension work and general automotive service. Backed by an 18-month limited warranty.
Specifications
- Drive: 1/2" square
- Mechanism: Twin Hammer
- Max torque: 627 ft-lbs (850 N·m)
- Working torque: 27–387 ft-lbs
- Free speed: 7,400 RPM
- Overall length: 5.7" (145 mm)
- Weight: 4.9 lbs (2.2 kg)
- Air consumption: 10.6 CFM
- Air inlet: 1/4" NPT
- Recommended hose: 3/8" (10 mm)
- Working pressure: 90 PSI
View all specifications 14 details
Performance
- Max Torque
- 627 ft·lb
- Free Speed
- 7400 rpm
Tool & Capacity
- Drive Size
- 1/2"
- Hammer Mechanism
- Twin Hammer
- Bolt Capacity
- 19 mm
- Mechanism
- Twin Hammer
- Model
- AB-190P
- Product Type
- Air Impact Wrench
Air Requirements
- Air Inlet
- 1/4"
- Air Consumption
- 0.3 m³/min
- Air Pressure
- 6.3 kg/cm²
- Recommended Hose
- 10 mm
Dimensions
- Weight
- 4.9 lb
- Overall Length
- 145 mm
Parts & Service
Parts for AB-190P
Open the model-specific exploded view to identify the part number, then contact us for availability.
