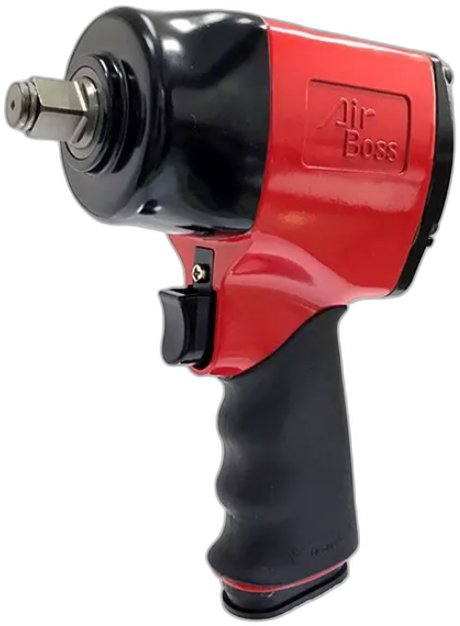

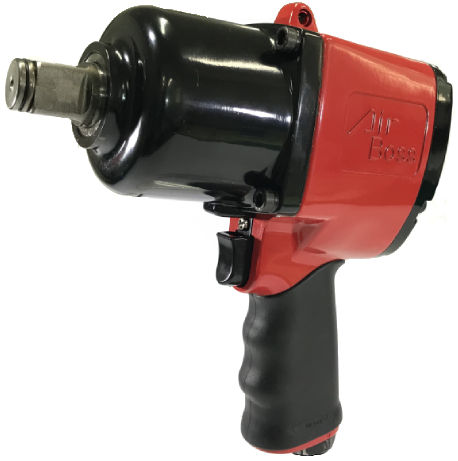

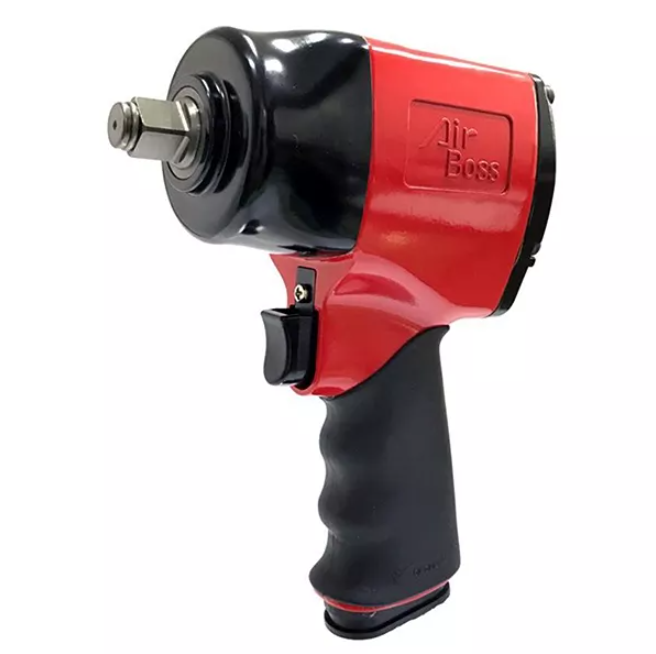

AIRBOSS® AB-230P Air Impact Wrench
SKU AB-230P
Type Air Impact Wrench
$334.99
Free shipping on orders US$99+ after discounts (contiguous U.S.). Shipping details
At a glance
Key Specifications
Performance and fit information for this exact model.
Max Torque
812 ft·lb
Drive Size
3/4"
Free Speed
6500 rpm
Weight
8.2 lb
Air Inlet
3/8"
Hammer Mechanism
Twin Hammer
AW Series Ultra Performance awards: INPEX Gold, IENA Silver, German Design Award Nominee
18-month limited warranty. See full warranty terms.
18-month limited warranty. See full warranty terms.
Product Details
Product Highlights
Part of the AIRBOSS AB Auto Repair line — a 3/4-inch Twin Hammer air impact wrench for light truck wheels, agricultural equipment and heavy automotive fasteners. Backed by an 18-month limited warranty.
Specifications
- Drive: 3/4" square
- Mechanism: Twin Hammer
- Max torque: 812 ft-lbs (1,100 N·m)
- Working torque: 295–649 ft-lbs
- Free speed: 6,500 RPM
- Overall length: 7.6" (192 mm)
- Weight: 8.2 lbs (3.7 kg)
- Air consumption: 14.1 CFM
- Air inlet: 3/8" NPT
- Recommended hose: 1/2" (12.7 mm)
- Working pressure: 90 PSI
View all specifications 14 details
Performance
- Max Torque
- 812 ft·lb
- Free Speed
- 6500 rpm
Tool & Capacity
- Drive Size
- 3/4"
- Hammer Mechanism
- Twin Hammer
- Bolt Capacity
- 23 mm
- Mechanism
- Twin Hammer
- Model
- AB-230P
- Product Type
- Air Impact Wrench
Air Requirements
- Air Inlet
- 3/8"
- Air Consumption
- 0.4 m³/min
- Air Pressure
- 6.3 kg/cm²
- Recommended Hose
- 12.7 mm
Dimensions
- Weight
- 8.2 lb
- Overall Length
- 192 mm
Parts & Service
Parts for AB-230P
Open the model-specific exploded view to identify the part number, then contact us for availability.
