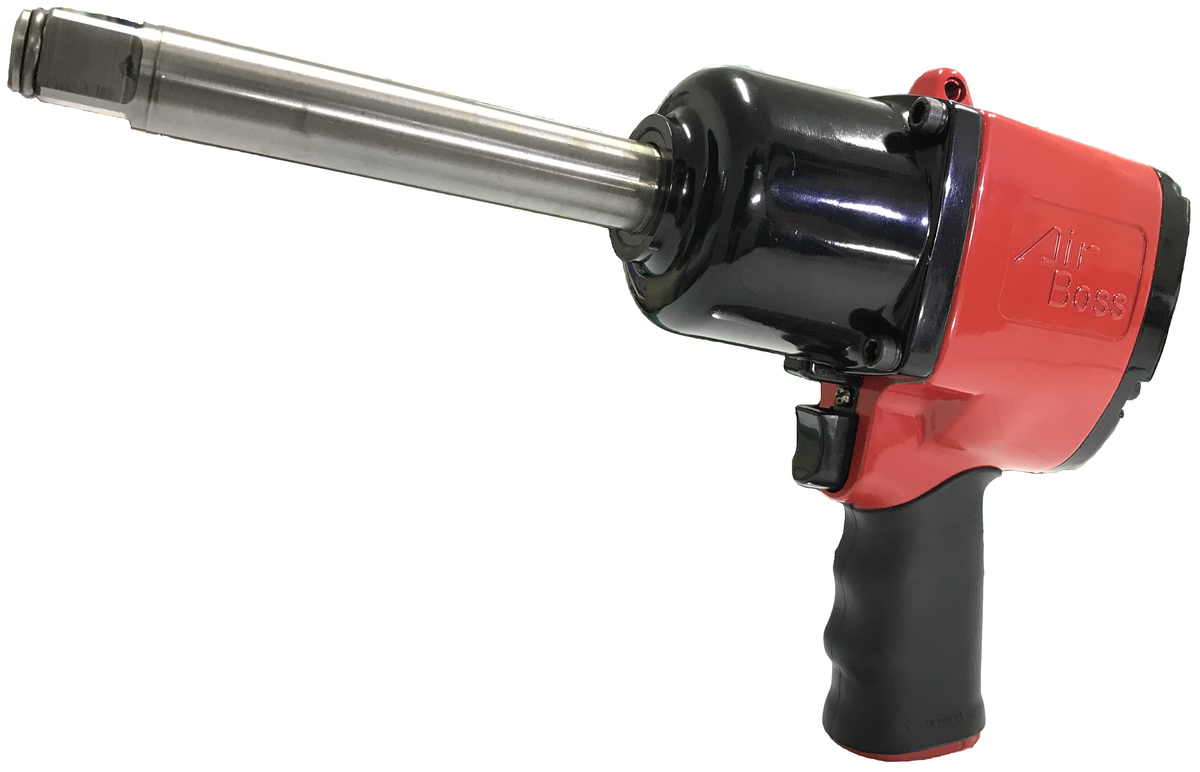

AIRBOSS® AB-230PL 3/4" Air Impact Wrench — Extended Anvil
SKU AB-230PL
Type Air Impact Wrench
Contact for Availability
Contact Us
At a glance
Key Specifications
Performance and fit information for this exact model.
Max Torque
738 ft·lb
Drive Size
3/4"
Free Speed
6500 rpm
Weight
9.3 lb
Air Inlet
3/8"
Hammer Mechanism
Twin Hammer
18-month limited warranty. See full warranty terms.
Product Details
Product Highlights
Part of the AIRBOSS AB Auto Repair line — a 3/4-inch Twin Hammer air impact wrench with an extended anvil that reaches deep into truck wheel wells and recessed fasteners. Backed by an 18-month limited warranty.
Specifications
- Drive: 3/4" square
- Mechanism: Twin Hammer
- Max torque: 738 ft-lbs (1,000 N·m)
- Working torque: 265–584 ft-lbs
- Free speed: 6,500 RPM
- Overall length: 12.5" (317 mm)
- Weight: 9.3 lbs (4.2 kg)
- Air consumption: 14.1 CFM
- Air inlet: 3/8" NPT
- Recommended hose: 1/2" (12.7 mm)
- Working pressure: 90 PSI
View all specifications 14 details
Performance
- Max Torque
- 738 ft·lb
- Free Speed
- 6500 rpm
Tool & Capacity
- Drive Size
- 3/4"
- Hammer Mechanism
- Twin Hammer
- Bolt Capacity
- 23 mm
- Mechanism
- Twin Hammer
- Model
- AB-230PL
- Product Type
- Air Impact Wrench
Air Requirements
- Air Inlet
- 3/8"
- Air Consumption
- 0.4 m³/min
- Air Pressure
- 6.3 kg/cm²
- Recommended Hose
- 12.7 mm
Dimensions
- Weight
- 9.3 lb
- Overall Length
- 317 mm
Parts & Service
Parts for AB-230PL
Open the model-specific exploded view to identify the part number, then contact us for availability.
