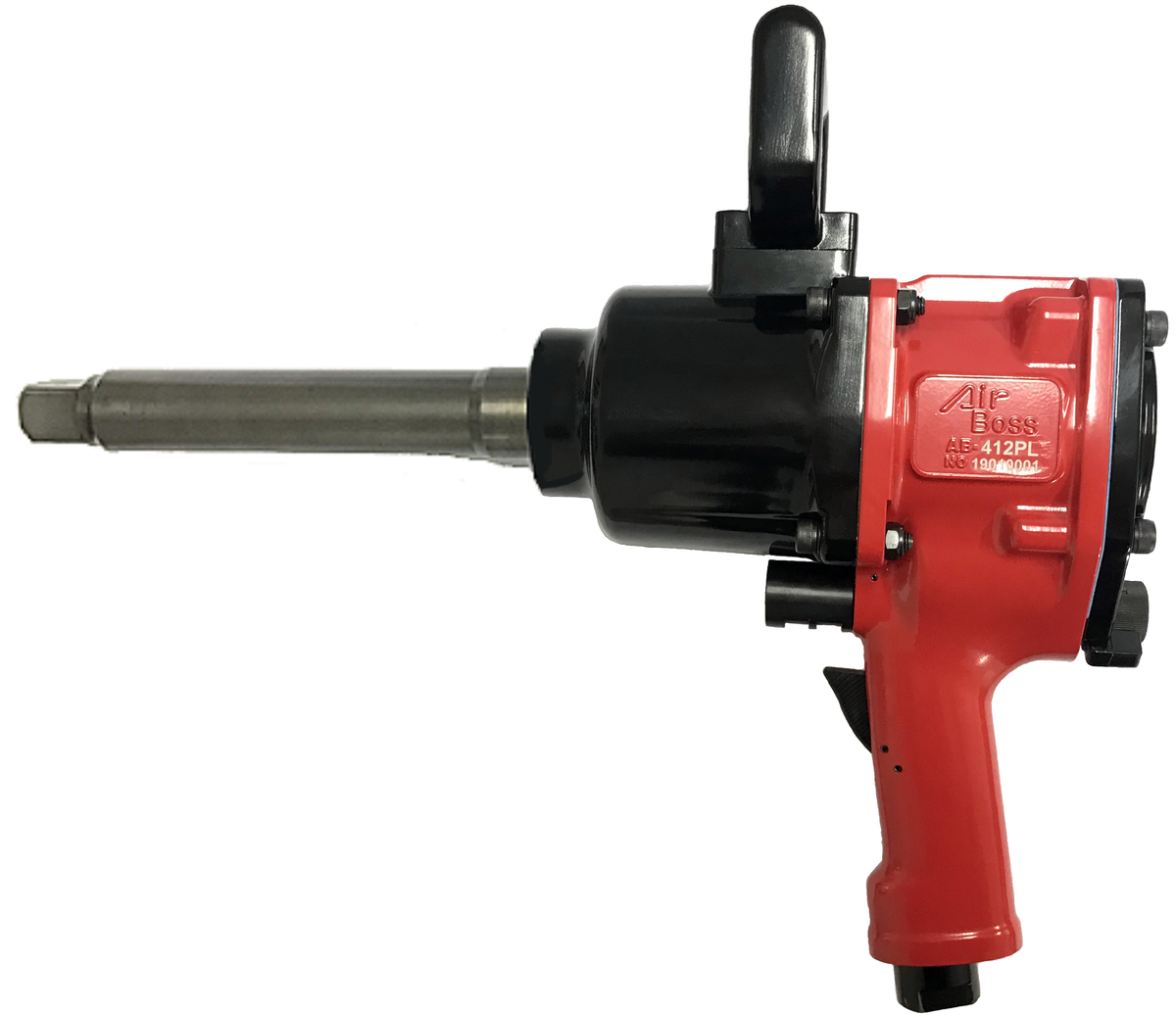

AIRBOSS® AB-412PL 1" Air Impact Wrench — Extended Anvil
SKU AB-412PL
Type Air Impact Wrench
Contact for Availability
Contact Us
At a glance
Key Specifications
Performance and fit information for this exact model.
Max Torque
1771 ft·lb
Drive Size
1"
Free Speed
4200 rpm
Weight
24 lb
Air Inlet
1/2"
Hammer Mechanism
Swing Hammer
18-month limited warranty. See full warranty terms.
Product Details
Product Highlights
Part of the AIRBOSS AB Auto Repair line — a 1-inch Swing Hammer air impact wrench in pistol-grip form with an extended anvil that reaches deep into dual-wheel hubs. Built for truck tire service and heavy fasteners, and backed by an 18-month limited warranty.
Specifications
- Drive: 1" square
- Mechanism: Swing Hammer
- Max torque: 1,771 ft-lbs (2,400 N·m)
- Working torque: 649–1,416 ft-lbs
- Free speed: 4,200 RPM
- Overall length: 16.8" (427 mm)
- Weight: 24.0 lbs (10.9 kg)
- Air consumption: 21.2 CFM
- Air inlet: 1/2" NPT
- Recommended hose: 1/2" (12.7 mm)
- Working pressure: 90 PSI
View all specifications 14 details
Performance
- Max Torque
- 1771 ft·lb
- Free Speed
- 4200 rpm
Tool & Capacity
- Drive Size
- 1"
- Hammer Mechanism
- Swing Hammer
- Bolt Capacity
- 41 mm
- Mechanism
- Swing Hammer
- Model
- AB-412PL
- Product Type
- Air Impact Wrench
Air Requirements
- Air Inlet
- 1/2"
- Air Consumption
- 0.6 m³/min
- Air Pressure
- 6.3 kg/cm²
- Recommended Hose
- 12.7 mm
Dimensions
- Weight
- 24 lb
- Overall Length
- 427 mm
Parts & Service
Parts for AB-412PL
Open the model-specific exploded view to identify the part number, then contact us for availability.
