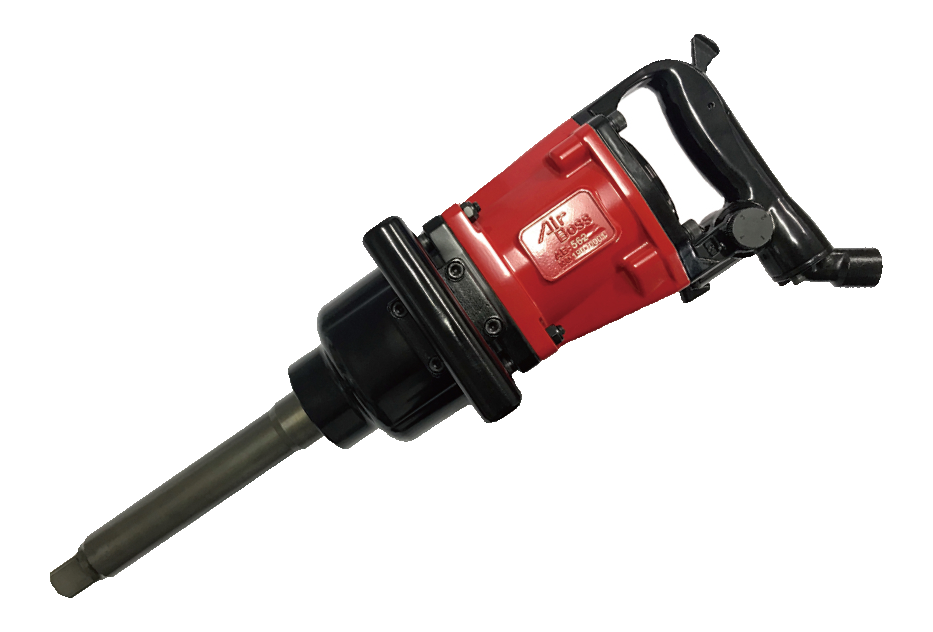

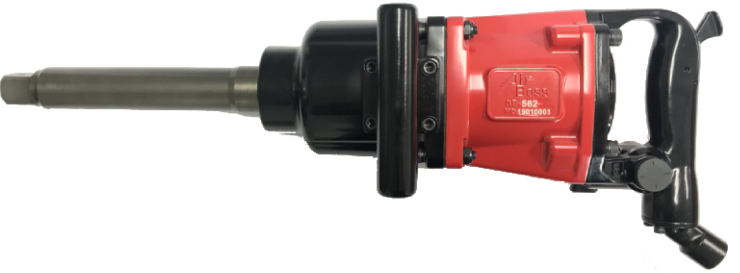

AIRBOSS® AB-562GL 1" Air Impact Wrench — Straight, Extended Anvil
SKU AB-562GL
Type Air Impact Wrench
Contact for Availability
Contact Us
At a glance
Key Specifications
Performance and fit information for this exact model.
Max Torque
2508 ft·lb
Drive Size
1"
Free Speed
3000 rpm
Weight
34.2 lb
Air Inlet
1/2"
Hammer Mechanism
Swing Hammer
18-month limited warranty. See full warranty terms.
Product Details
Product Highlights
Part of the AIRBOSS AB Auto Repair line — a 1-inch Swing Hammer air impact wrench in straight body form with an extended anvil that reaches deep into dual-wheel hubs on semi trucks and trailers. Backed by an 18-month limited warranty.
Specifications
- Drive: 1" square
- Mechanism: Swing Hammer
- Max torque: 2,508 ft-lbs (3,400 N·m)
- Working torque: 1,328–1,948 ft-lbs
- Free speed: 3,000 RPM
- Overall length: 24.2" (614 mm)
- Weight: 34.2 lbs (15.5 kg)
- Air consumption: 21.2 CFM
- Air inlet: 1/2" NPT
- Recommended hose: 1/2" (12.7 mm)
- Working pressure: 90 PSI
View all specifications 14 details
Performance
- Max Torque
- 2508 ft·lb
- Free Speed
- 3000 rpm
Tool & Capacity
- Drive Size
- 1"
- Hammer Mechanism
- Swing Hammer
- Bolt Capacity
- 56 mm
- Mechanism
- Swing Hammer
- Model
- AB-562GL
- Product Type
- Air Impact Wrench
Air Requirements
- Air Inlet
- 1/2"
- Air Consumption
- 0.6 m³/min
- Air Pressure
- 6.3 kg/cm²
- Recommended Hose
- 12.7 mm
Dimensions
- Weight
- 34.2 lb
- Overall Length
- 614 mm
Parts & Service
Parts for AB-562GL
Open the model-specific exploded view to identify the part number, then contact us for availability.
