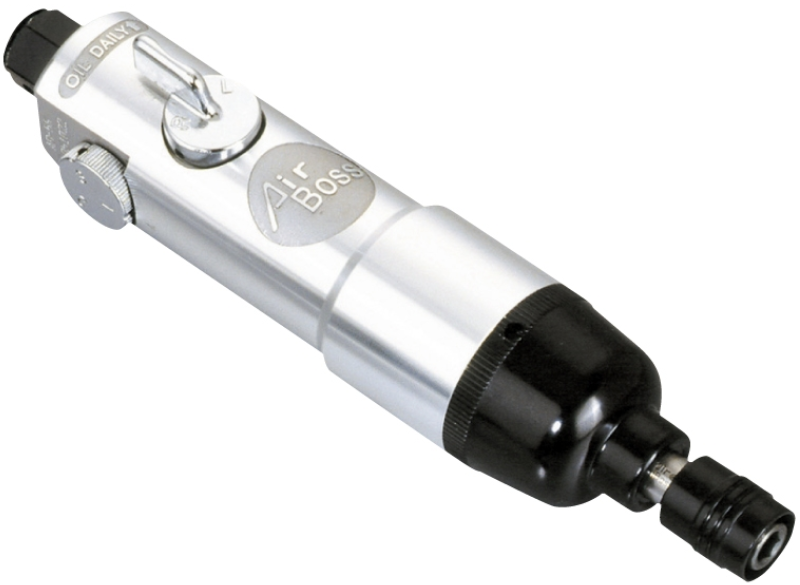

AIRBOSS® AB-5S Industrial Pneumatic Tool
SKU AB-5S
Type Air Impact Screwdriver
Email for Quote
Request a Quote
At a glance
Key Specifications
Performance and fit information for this exact model.
Output
1/4" hex
Working Torque
8-30 ft·lb / 11-40 N·m
Free Speed
10000 rpm
Hammer Mechanism
Twin Dog
Bolt Capacity
4-5 mm
Weight
1.5 lb
Overall Length
195 mm
18-month limited warranty. See full warranty terms.
Product Details
Product Highlights
AIRBOSS AB-5S is part of the industrial pneumatic tool catalog. Product photos are shown for model identification. Request a quote to confirm specifications, configuration, lead time, and pricing.
View all specifications 13 details
Performance
- Working Torque
- 8-30 ft·lb / 11-40 N·m
- Free Speed
- 10000 rpm
Tool & Capacity
- Output
- 1/4" hex
- Hammer Mechanism
- Twin Dog
- Bolt Capacity
- 4-5 mm
- Model
- AB-5S
- Product Type
- Air Impact Screwdriver
Air Requirements
- Air Consumption
- 0.2 m³/min
- Air Inlet
- 1/4"
- Air Pressure
- 6.3 kg/cm²
- Recommended Hose
- 6.4 mm
Dimensions
- Weight
- 1.5 lb
- Overall Length
- 195 mm
Parts & Service
Parts for AB-5S
Open the model-specific exploded view to identify the part number, then contact us for availability.
