AIRBOSS® AG-100CH Industrial Pneumatic Tool
SKU AG-100CH
Type Air Angle Grinder
Email for Quote
Request a Quote
At a glance
Key Specifications
Performance and fit information for this exact model.
Wheel Capacity
4×1/4×5/8 in
Free Speed
13500 rpm
Power
0.44 hp
Spindle Thread
3/8-24UNF(M)
18-month limited warranty. See full warranty terms.
Product Details
Product Highlights

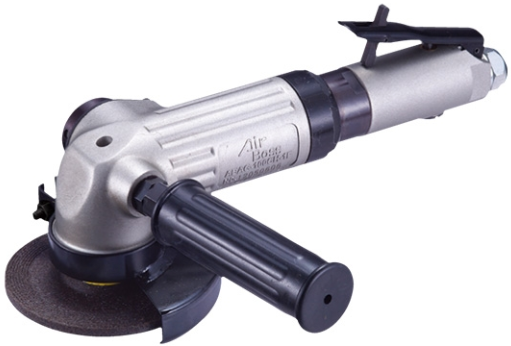

AIRBOSS AG-100CH is part of the industrial pneumatic tool catalog. Product photos are shown for model identification. Request a quote to confirm specifications, configuration, lead time, and pricing.
View all specifications 13 details
Performance
- Free Speed
- 13500 rpm
- Power
- 0.44 hp
Tool & Capacity
- Wheel Capacity
- 4×1/4×5/8 in
- Spindle Thread
- 3/8-24UNF(M)
- Model
- AG-100CH
- Product Type
- Air Angle Grinder
Air Requirements
- Air Consumption
- 23.0 CFM
- Air Inlet
- 3/8"
- Air Pressure
- 6.3 kg/cm²
- Recommended Hose
- 3/8"
Dimensions
- Angle Head Height
- 3.03 in
- Overall Length
- 9.45 in
- Weight
- 4.0 lb
Parts & Service
Parts for AG-100CH
Open the model-specific exploded view to identify the part number, then contact us for availability.
