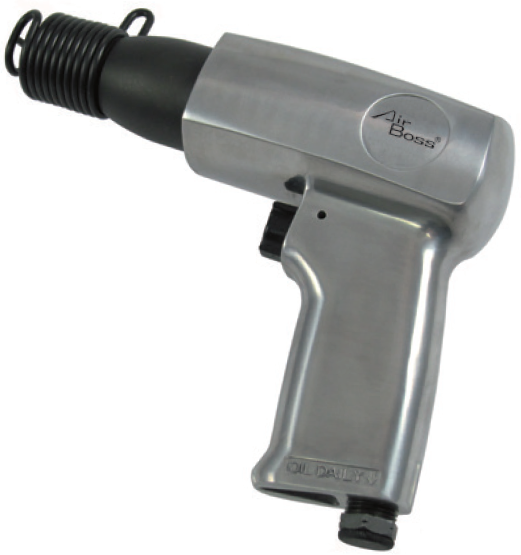

AIRBOSS® AH-013 Industrial Pneumatic Tool
SKU AH-013
Type Air Hammer
Email for Quote
Request a Quote
At a glance
Key Specifications
Performance and fit information for this exact model.
Shank Size
Round Shank (10.2mm)
Piston Stroke
67 mm
Blows Per Minute
3500 bpm
Weight
1.5 kg
Overall Length
171 mm
18-month limited warranty. See full warranty terms.
Product Details
Product Highlights
AIRBOSS AH-013 is part of the industrial pneumatic tool catalog. Product photos are shown for model identification. Request a quote to confirm specifications, configuration, lead time, and pricing.
- AH-013 Air Hammer
View all specifications 13 details
Performance
- Blows Per Minute
- 3500 bpm
- Sound Level
- 99 dBA
- Vibration
- 8.4 m/s²
Tool & Capacity
- Shank Size
- Round Shank (10.2mm)
- Piston Stroke
- 67 mm
- Model
- AH-013
- Product Type
- Air Hammer
Air Requirements
- Air Consumption
- 0.11 m³/min
- Air Inlet
- 1/4"
- Air Pressure
- 90 PSI
- Recommended Hose
- 6.5 mm
Dimensions
- Weight
- 1.5 kg
- Overall Length
- 171 mm
Parts & Service
Parts for AH-013
Open the model-specific exploded view to identify the part number, then contact us for availability.
