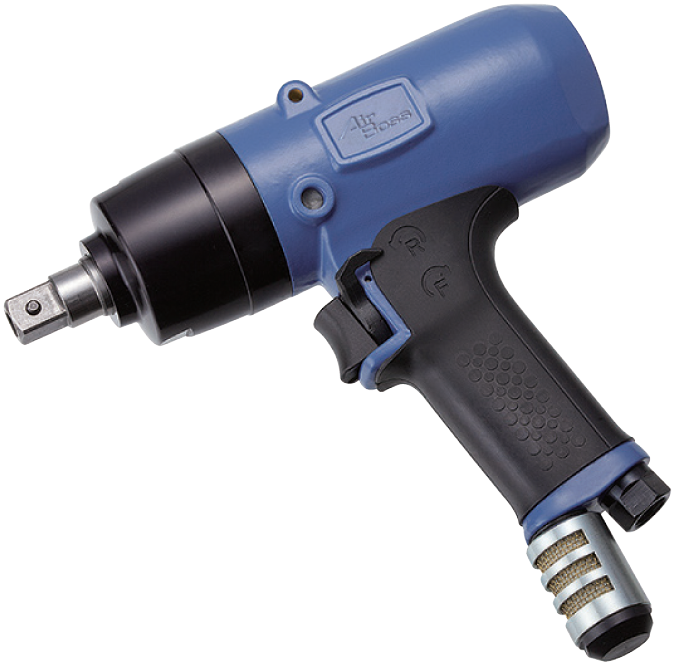

AIRBOSS® APW-110PA Shut-Off Oil Pulse Tool
SKU APW-110PA-1/2
Type Oil Pulse Tool
Key Specifications
Performance and fit information for this exact model.
Working Torque Range & Specifications
Working torque varies by output configuration. Review the range for the exact drive or hex configuration below, then include that configuration in your quote request.
APW-110PA is an AIRBOSS pistol-type shut-off air oil pulse / impulse tool for controlled fastening and assembly applications. Catalog-rated for standard 6.3 kg/cm² air pressure.
- Catalog model: APW-110PA
- Series: APW-PA
- Mechanism: Oil Pulse
- Tool form: Pistol
- Shut-off type: Shut-off
1/2 in Square Drive Wrench
- Store SKU: APW-110PA-1/2
- Bolt capacity: 12 mm
- Free speed: 4600 rpm
- Working Torque Range: 52-81 ft-lb / 70-110 N·m
- Air inlet: NPT 1/4 in
- Recommended air hose: 10 mm
- Air consumption: 0.72 m³/min
- Weight: 3.74 lb / 1.7 kg
- Overall length: 196 mm
- Air pressure: 6.3 kg/cm²
Store SKUs are normalized from the catalog model and output-drive configuration. Catalog suitable-torque ranges are reference values; actual fastening performance can vary by joint and application.
View all specifications 15 details
Performance
- Working Torque
- 52-81 ft-lb / 70-110 N·m
- Free Speed
- 4600 rpm
Tool & Capacity
- Output
- 1/2 in Square Drive Wrench
- Bolt Capacity
- 12 mm
- Mechanism
- Oil Pulse
- Model
- APW-110PA
- Product Type
- Oil Pulse Tool
- Shut-Off Type
- Shut-off
- Tool Form
- Pistol
Air Requirements
- Air Inlet
- NPT 1/4 in
- Air Consumption
- 0.72 m³/min
- Air Pressure
- 6.3 kg/cm²
- Recommended Hose
- 10 mm
Dimensions
- Weight
- 3.74 lb / 1.7 kg
- Overall Length
- 196 mm

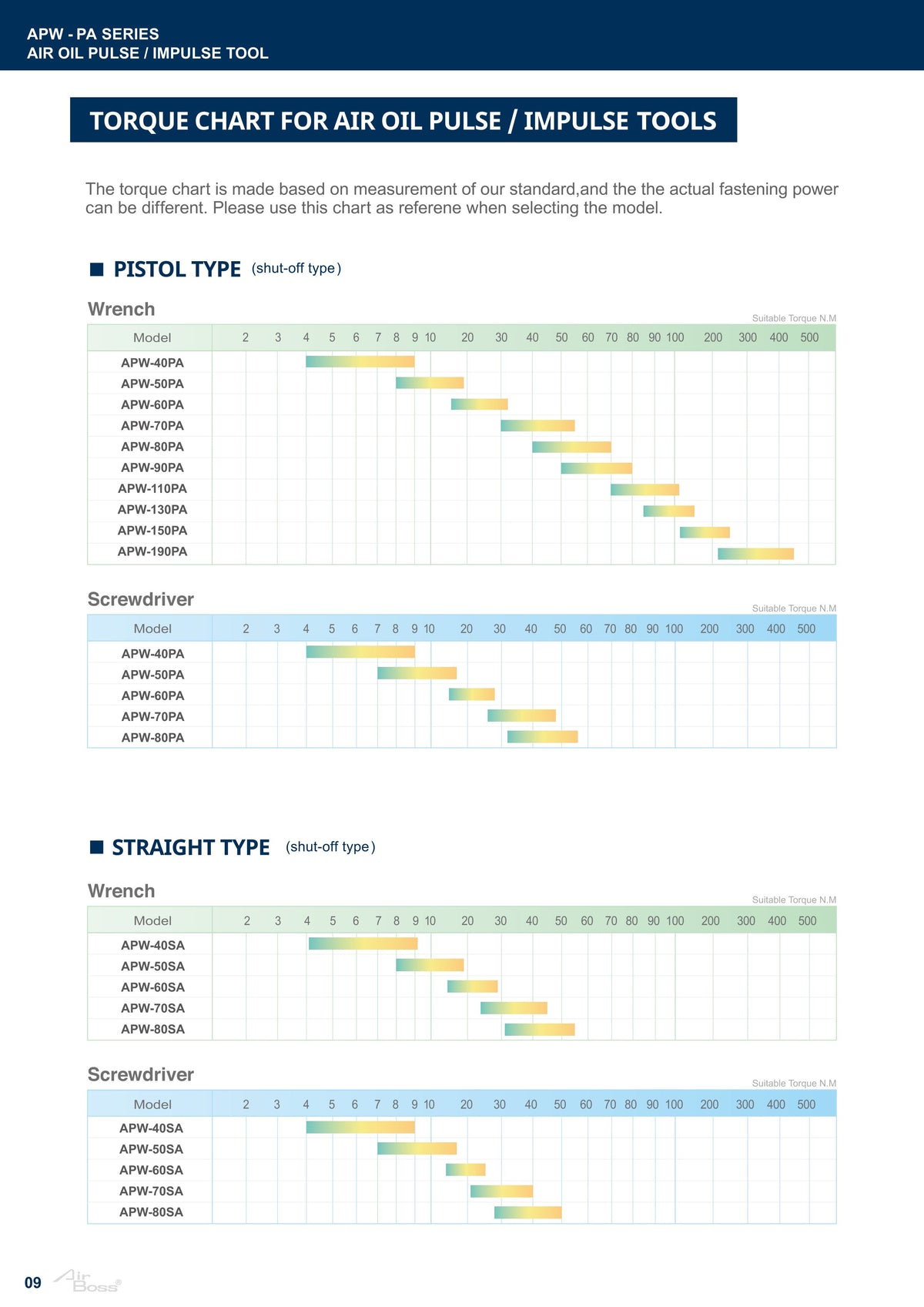

Catalog reference chart. Use the exact working torque range listed above for the selected drive or hex configuration.
Parts for APW-110PA-1/2
Open the model-specific exploded view to identify the part number, then contact us for availability.
