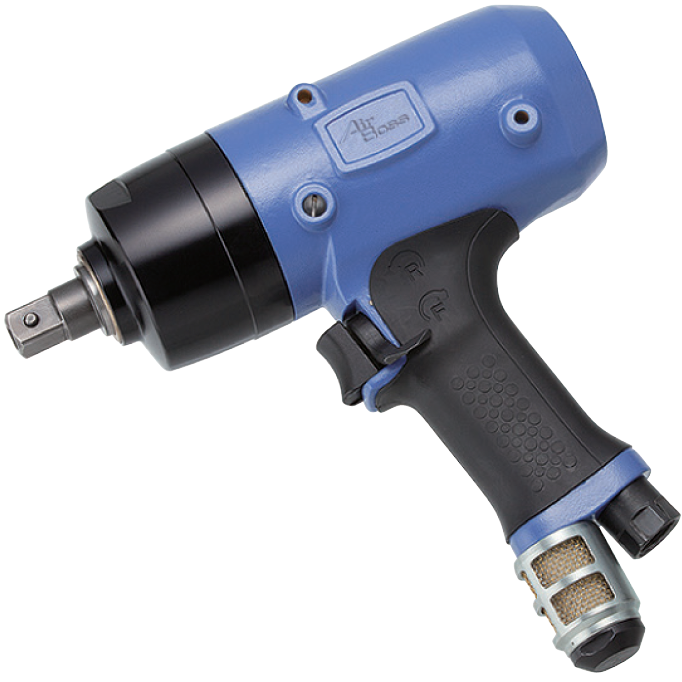

AIRBOSS® APW-130PA Shut-Off Oil Pulse Tool
SKU APW-130PA-1/2
Type Oil Pulse Tool
Key Specifications
Performance and fit information for this exact model.
Working Torque Range & Specifications
Working torque varies by output configuration. Review the range for the exact drive or hex configuration below, then include that configuration in your quote request.
APW-130PA is an AIRBOSS pistol-type shut-off air oil pulse / impulse tool for controlled fastening and assembly applications. Catalog-rated for standard 6.3 kg/cm² air pressure.
- Catalog model: APW-130PA
- Series: APW-PA
- Mechanism: Oil Pulse
- Tool form: Pistol
- Shut-off type: Shut-off
1/2 in Square Drive Wrench
- Store SKU: APW-130PA-1/2
- Bolt capacity: 12-14 mm
- Free speed: 4800 rpm
- Working Torque Range: 63-111 ft-lb / 85-150 N·m
- Air inlet: NPT 3/8 in
- Recommended air hose: 13 mm
- Air consumption: 0.9 m³/min
- Weight: 5.06 lb / 2.3 kg
- Overall length: 197 mm
- Air pressure: 6.3 kg/cm²
Store SKUs are normalized from the catalog model and output-drive configuration. Catalog suitable-torque ranges are reference values; actual fastening performance can vary by joint and application.
View all specifications 15 details
Performance
- Working Torque
- 63-111 ft-lb / 85-150 N·m
- Free Speed
- 4800 rpm
Tool & Capacity
- Output
- 1/2 in Square Drive Wrench
- Bolt Capacity
- 12-14 mm
- Mechanism
- Oil Pulse
- Model
- APW-130PA
- Product Type
- Oil Pulse Tool
- Shut-Off Type
- Shut-off
- Tool Form
- Pistol
Air Requirements
- Air Inlet
- NPT 3/8 in
- Air Consumption
- 0.9 m³/min
- Air Pressure
- 6.3 kg/cm²
- Recommended Hose
- 13 mm
Dimensions
- Weight
- 5.06 lb / 2.3 kg
- Overall Length
- 197 mm

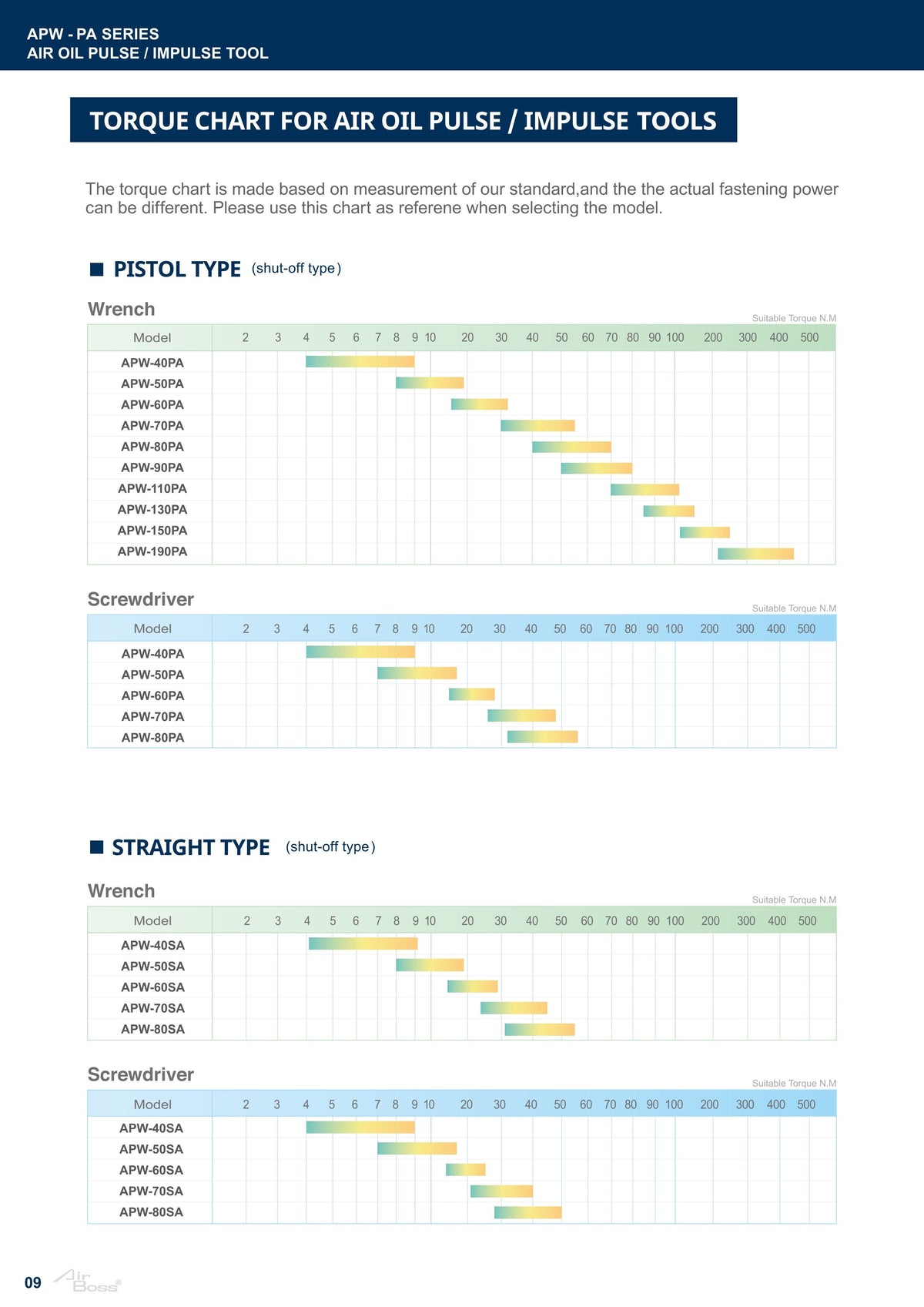

Catalog reference chart. Use the exact working torque range listed above for the selected drive or hex configuration.
Parts for APW-130PA-1/2
Open the model-specific exploded view to identify the part number, then contact us for availability.
