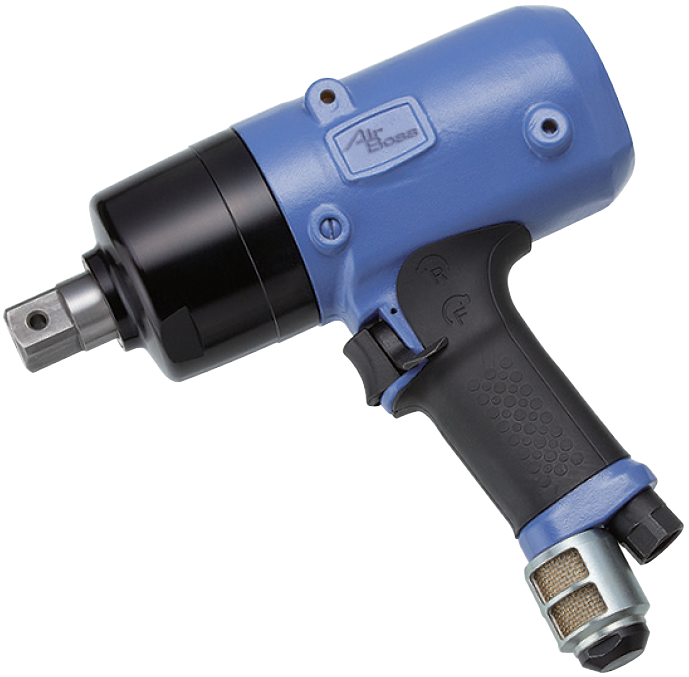

AIRBOSS® APW-150PAL Low-Pressure Shut-Off Oil Pulse Tool
SKU APW-150PAL-3/4
Type Oil Pulse Tool
Key Specifications
Performance and fit information for this exact model.

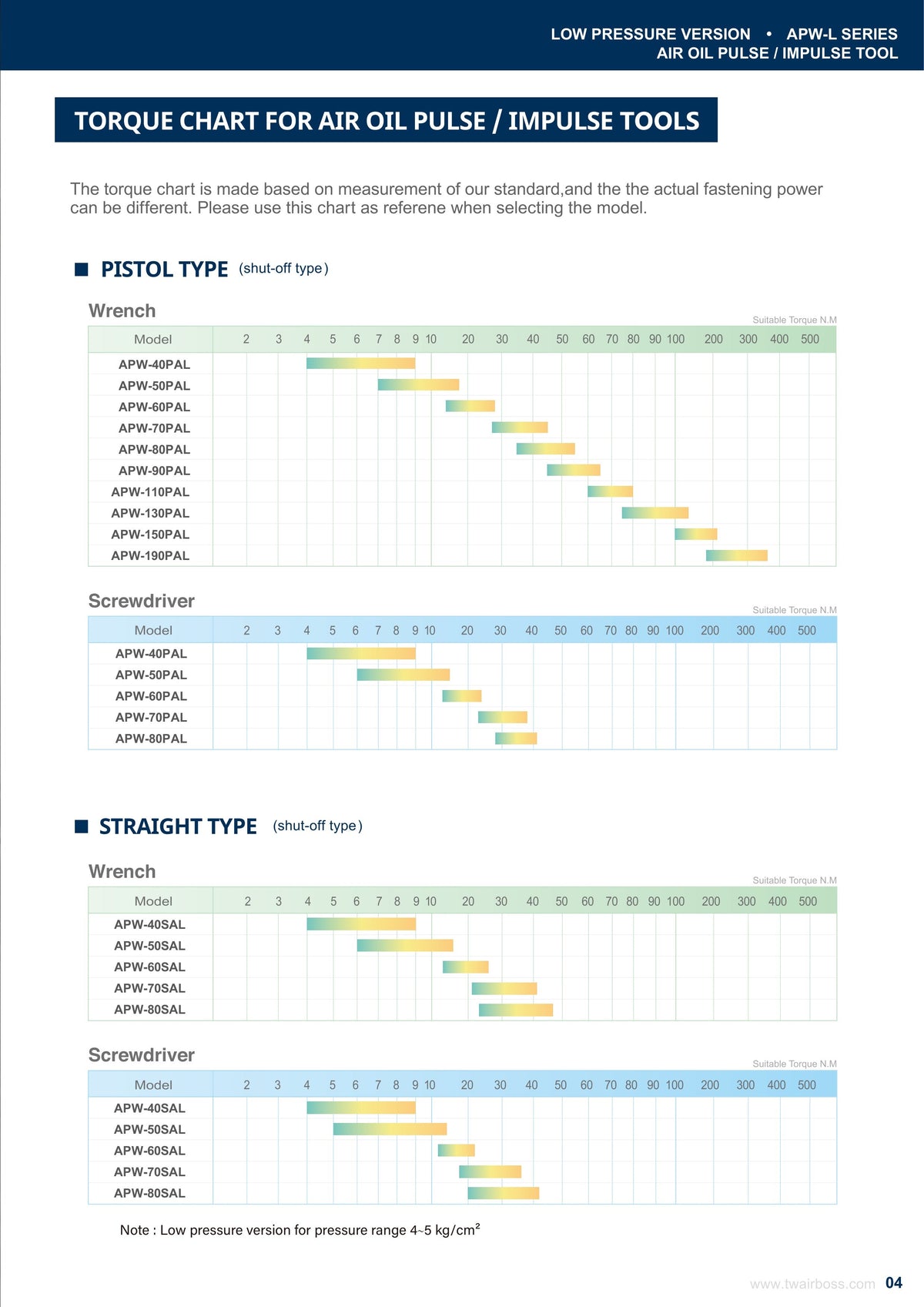

Working Torque Range & Specifications
Working torque varies by output configuration. Review the range for the exact drive or hex configuration below, then include that configuration in your quote request.
APW-150PAL is an AIRBOSS pistol-type shut-off air oil pulse / impulse tool for controlled fastening and assembly applications. Designed for low-pressure operation at the catalog-rated 4-5 kg/cm² range.
- Catalog model: APW-150PAL
- Series: APW-L
- Mechanism: Oil Pulse
- Tool form: Pistol
- Shut-off type: Shut-off
3/4 in Square Drive Wrench
- Store SKU: APW-150PAL-3/4
- Bolt capacity: 12-16 mm
- Free speed: 3400 rpm
- Working Torque Range: 74-155 ft-lb / 100-210 N·m
- Air inlet: NPT 3/8 in
- Recommended air hose: 13 mm
- Air consumption: 1.26 m³/min
- Weight: 6.82 lb / 3.1 kg
- Overall length: 216 mm
- Air pressure: 4-5 kg/cm²
Store SKUs are normalized from the catalog model and output-drive configuration. Catalog suitable-torque ranges are reference values; actual fastening performance can vary by joint and application.
View all specifications 15 details
Performance
- Working Torque
- 74-155 ft-lb / 100-210 N·m
- Free Speed
- 3400 rpm
Tool & Capacity
- Output
- 3/4 in Square Drive Wrench
- Bolt Capacity
- 12-16 mm
- Mechanism
- Oil Pulse
- Model
- APW-150PAL
- Product Type
- Oil Pulse Tool
- Shut-Off Type
- Shut-off
- Tool Form
- Pistol
Air Requirements
- Air Inlet
- NPT 3/8 in
- Air Consumption
- 1.26 m³/min
- Air Pressure
- 4-5 kg/cm²
- Recommended Hose
- 13 mm
Dimensions
- Weight
- 6.82 lb / 3.1 kg
- Overall Length
- 216 mm
Parts for APW-150PAL-3/4
Open the model-specific exploded view to identify the part number, then contact us for availability.
