AIRBOSS® AIRBOSS APW-40PAL Low-Pressure Shut-Off Oil Pulse Tool
SKU APW-40PAL-1/4
Type Oil Pulse Tool
Email for Quote
Request a Quote
View working torque range & specifications
18-month factory warranty
Oil Pulse Catalog Data

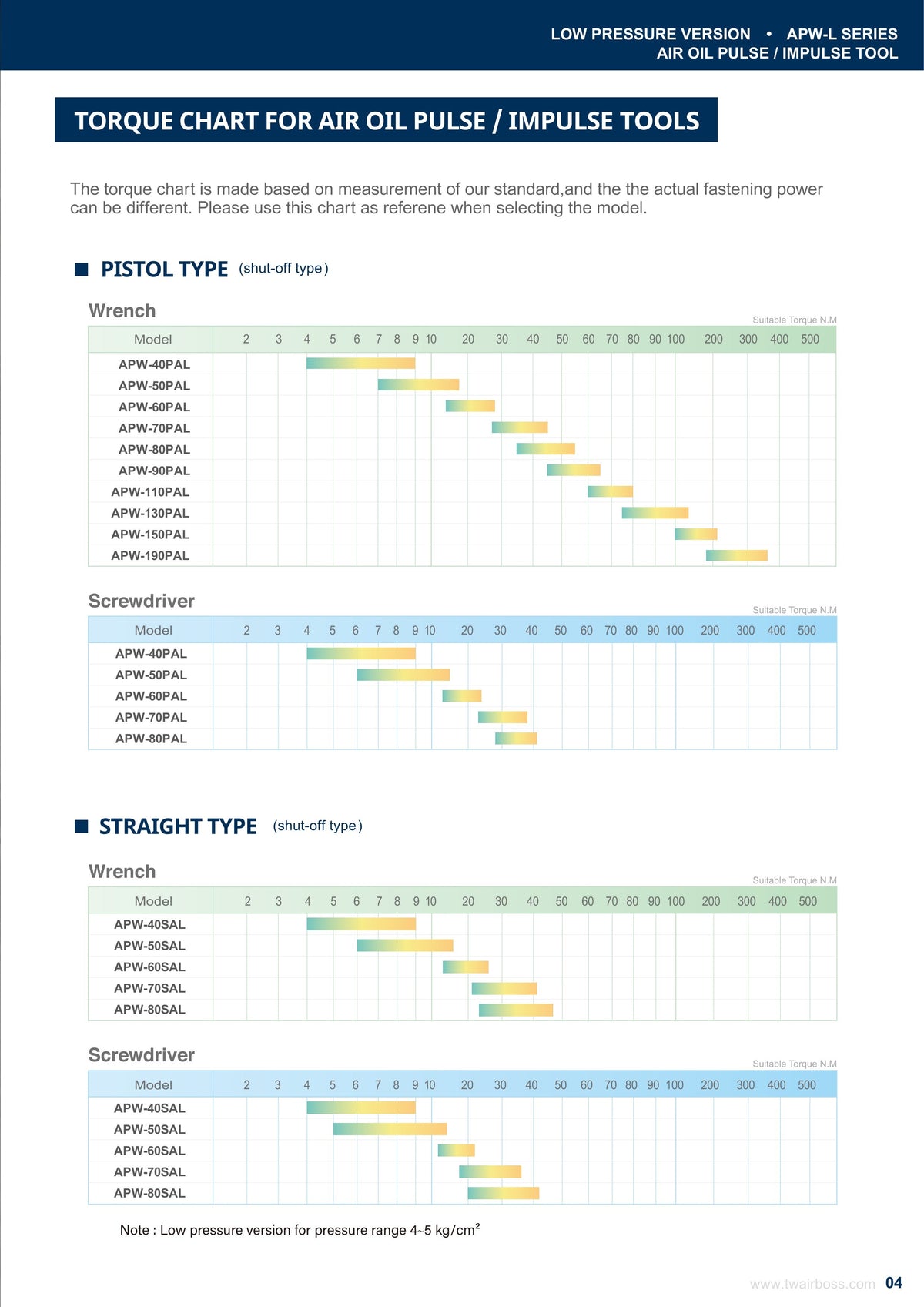

Working Torque Range & Specifications
Working torque varies by output configuration. Review the range for the exact drive or hex configuration below, then include that configuration in your quote request.
APW-40PAL is an AIRBOSS pistol-type shut-off air oil pulse / impulse tool for controlled fastening and assembly applications. Designed for low-pressure operation at the catalog-rated 4-5 kg/cm² range.
- Catalog model: APW-40PAL
- Series: APW-L
- Mechanism: Oil Pulse
- Tool form: Pistol
- Shut-off type: Shut-off

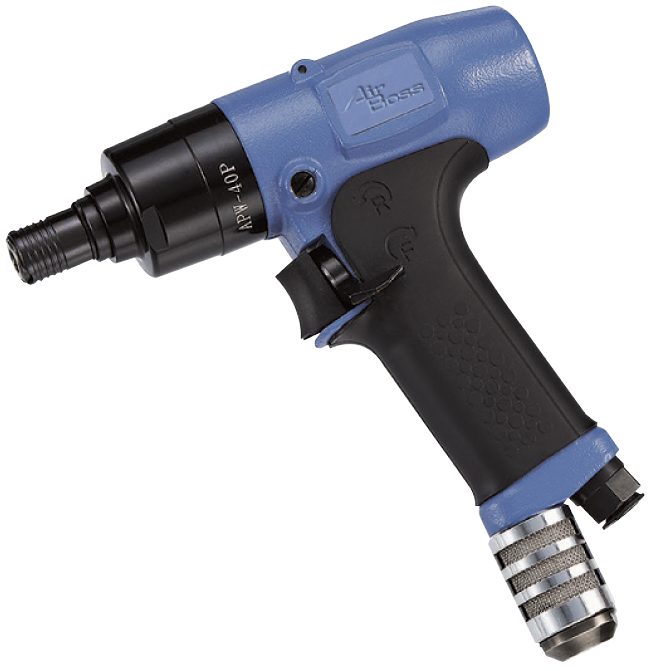

1/4 in Hex Screwdriver
- Store SKU: APW-40PAL-1/4
- Bolt capacity: 5 mm
- Free speed: 4700 rpm
- Working Torque Range: 3-6 ft-lb / 4-9 N·m
- Air inlet: NPT 1/4 in
- Recommended air hose: 6.3 mm
- Air consumption: 0.24 m³/min
- Weight: 1.98 lb / 0.9 kg
- Overall length: 164 mm
- Air pressure: 4-5 kg/cm²

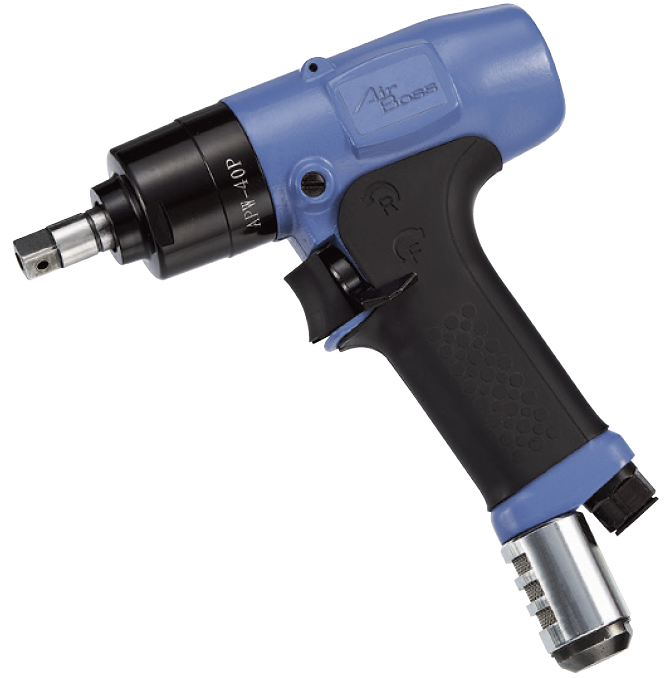

3/8 in Square Drive Wrench
- Store SKU: APW-40PAL-3/8
- Bolt capacity: 5 mm
- Free speed: 4700 rpm
- Working Torque Range: 3-6 ft-lb / 4-9 N·m
- Air inlet: NPT 1/4 in
- Recommended air hose: 6.3 mm
- Air consumption: 0.24 m³/min
- Weight: 1.98 lb / 0.9 kg
- Overall length: 164 mm
- Air pressure: 4-5 kg/cm²
Store SKUs are normalized from the catalog model and output-drive configuration. Catalog suitable-torque ranges are reference values; actual fastening performance can vary by joint and application.
