AIRBOSS® APW-50PAL Low-Pressure Shut-Off Oil Pulse Tool
SKU APW-50PAL-1/4
Type Oil Pulse Tool
Key Specifications
Performance and fit information for this exact model.

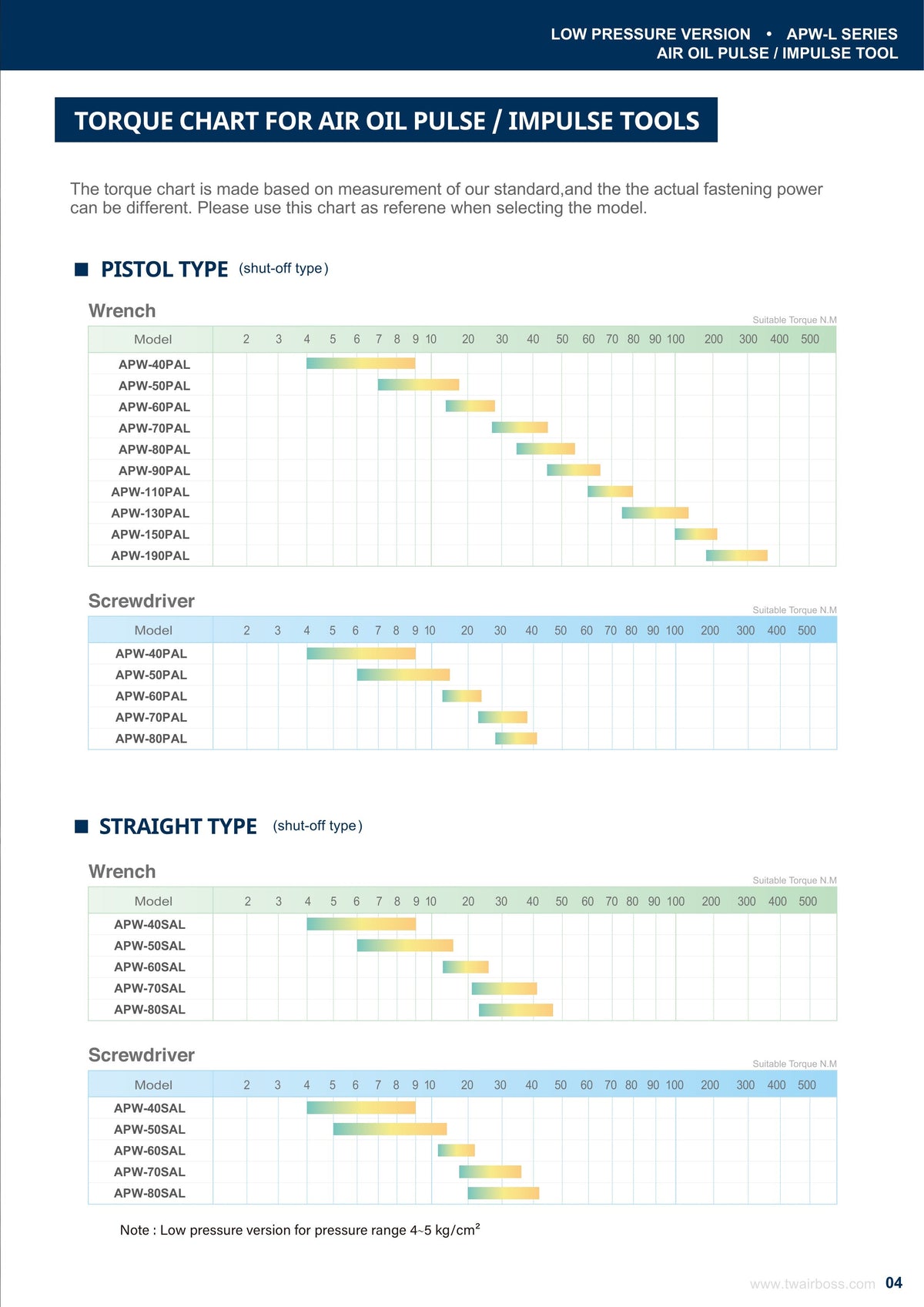

Working Torque Range & Specifications
Working torque varies by output configuration. Review the range for the exact drive or hex configuration below, then include that configuration in your quote request.
APW-50PAL is an AIRBOSS pistol-type shut-off air oil pulse / impulse tool for controlled fastening and assembly applications. Designed for low-pressure operation at the catalog-rated 4-5 kg/cm² range.
- Catalog model: APW-50PAL
- Series: APW-L
- Mechanism: Oil Pulse
- Tool form: Pistol
- Shut-off type: Shut-off

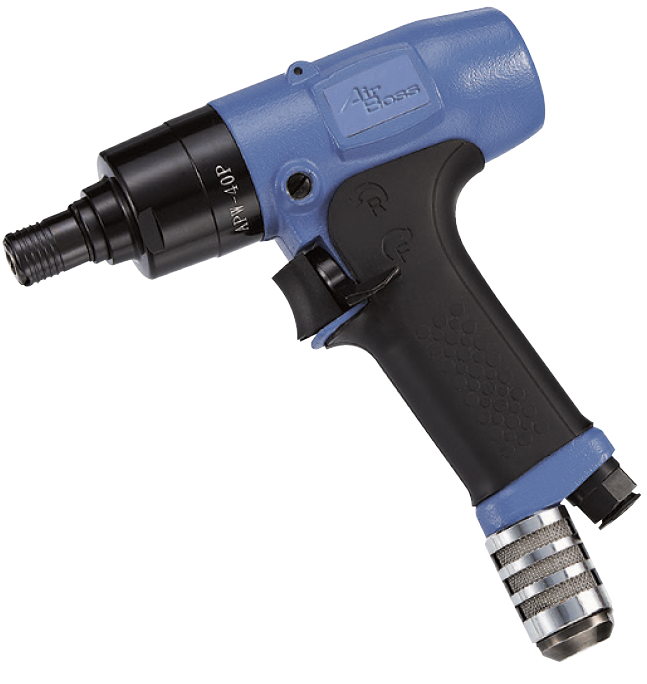

1/4 in Hex Screwdriver
- Store SKU: APW-50PAL-1/4
- Bolt capacity: 6 mm
- Free speed: 6300 rpm
- Working Torque Range: 4.5-11 ft-lb / 6-15 N·m
- Air inlet: NPT 1/4 in
- Recommended air hose: 10 mm
- Air consumption: 0.42 m³/min
- Weight: 1.98 lb / 0.9 kg
- Overall length: 164 mm
- Air pressure: 4-5 kg/cm²

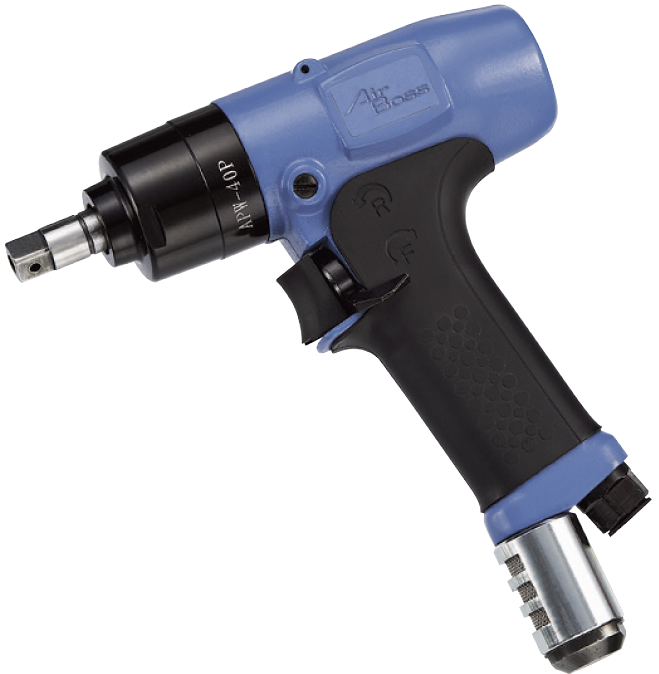

3/8 in Square Drive Wrench
- Store SKU: APW-50PAL-3/8
- Bolt capacity: 6 mm
- Free speed: 6300 rpm
- Working Torque Range: 5-12.5 ft-lb / 7-17 N·m
- Air inlet: NPT 1/4 in
- Recommended air hose: 10 mm
- Air consumption: 0.42 m³/min
- Weight: 1.98 lb / 0.9 kg
- Overall length: 164 mm
- Air pressure: 4-5 kg/cm²
Store SKUs are normalized from the catalog model and output-drive configuration. Catalog suitable-torque ranges are reference values; actual fastening performance can vary by joint and application.
View all specifications 15 details
Performance
- Working Torque
- 4.5-11 ft-lb / 6-15 N·m
- Free Speed
- 6300 rpm
Tool & Capacity
- Output
- 1/4 in Hex Screwdriver / 3/8 in Square Drive Wrench
- Bolt Capacity
- 6 mm
- Mechanism
- Oil Pulse
- Model
- APW-50PAL
- Product Type
- Oil Pulse Tool
- Shut-Off Type
- Shut-off
- Tool Form
- Pistol
Air Requirements
- Air Inlet
- NPT 1/4 in
- Air Consumption
- 0.42 m³/min
- Air Pressure
- 4-5 kg/cm²
- Recommended Hose
- 10 mm
Dimensions
- Weight
- 1.98 lb / 0.9 kg
- Overall Length
- 164 mm
Parts for APW-50PAL-1/4
Open the model-specific exploded view to identify the part number, then contact us for availability.
