AIRBOSS® AIRBOSS APW-60SA Straight Shut-Off Oil Pulse Tool
SKU APW-60SA-1/4
Type Oil Pulse Tool
Email for Quote
Request a Quote
View working torque range & specifications
18-month factory warranty
Oil Pulse Catalog Data
Working Torque Range & Specifications
Working torque varies by output configuration. Review the range for the exact drive or hex configuration below, then include that configuration in your quote request.
APW-60SA is an AIRBOSS straight-type shut-off air oil pulse / impulse tool for controlled fastening and assembly applications. Catalog-rated for standard 6.3 kg/cm² air pressure.
- Catalog model: APW-60SA
- Series: APW-SA
- Mechanism: Oil Pulse
- Tool form: Straight
- Shut-off type: Shut-off

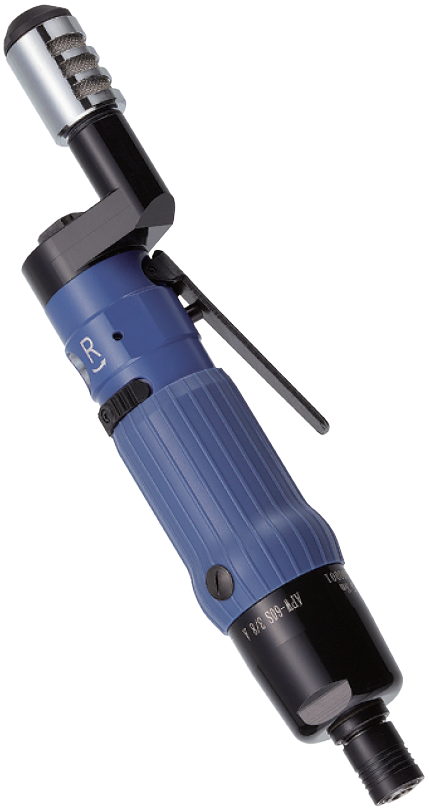

1/4 in Hex Screwdriver
- Store SKU: APW-60SA-1/4
- Bolt capacity: 6 mm
- Free speed: 6800 rpm
- Working Torque Range: 9-18 ft-lb / 14-25 N·m
- Air inlet: NPT 1/4 in
- Recommended air hose: 8 mm
- Air consumption: 0.42 m³/min
- Weight: 1.98 lb / 0.9 kg
- Overall length: 267 mm
- Air pressure: 6.3 kg/cm²

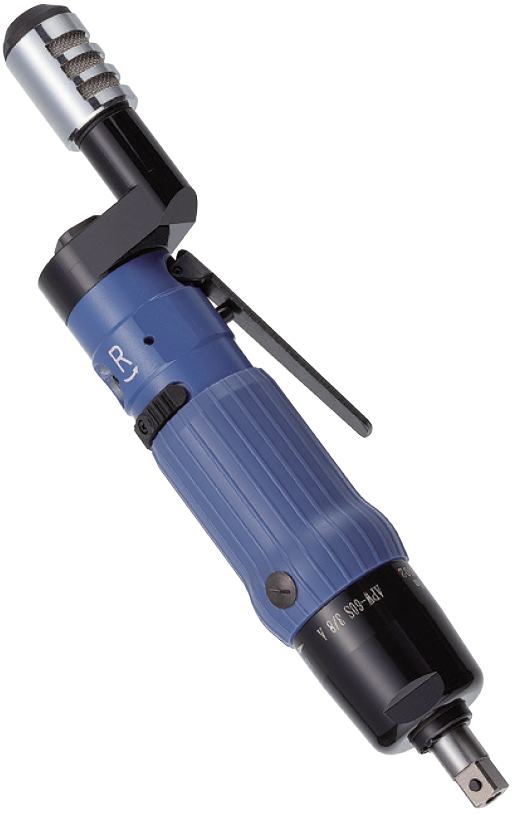

3/8 in Square Drive Wrench
- Store SKU: APW-60SA-3/8
- Bolt capacity: 6 mm
- Free speed: 6800 rpm
- Working Torque Range: 11-21 ft-lb / 15-29 N·m
- Air inlet: NPT 1/4 in
- Recommended air hose: 8 mm
- Air consumption: 0.42 m³/min
- Weight: 1.98 lb / 0.9 kg
- Overall length: 267 mm
- Air pressure: 6.3 kg/cm²
Store SKUs are normalized from the catalog model and output-drive configuration. Catalog suitable-torque ranges are reference values; actual fastening performance can vary by joint and application.
Catalog reference chart. Use the exact working torque range listed above for the selected drive or hex configuration.
