AIRBOSS® AIRBOSS APW-80SAL Low-Pressure Straight Shut-Off Oil Pulse Tool
SKU APW-80SAL-1/4
Type Oil Pulse Tool
Email for Quote
Request a Quote
View working torque range & specifications
18-month factory warranty
Oil Pulse Catalog Data

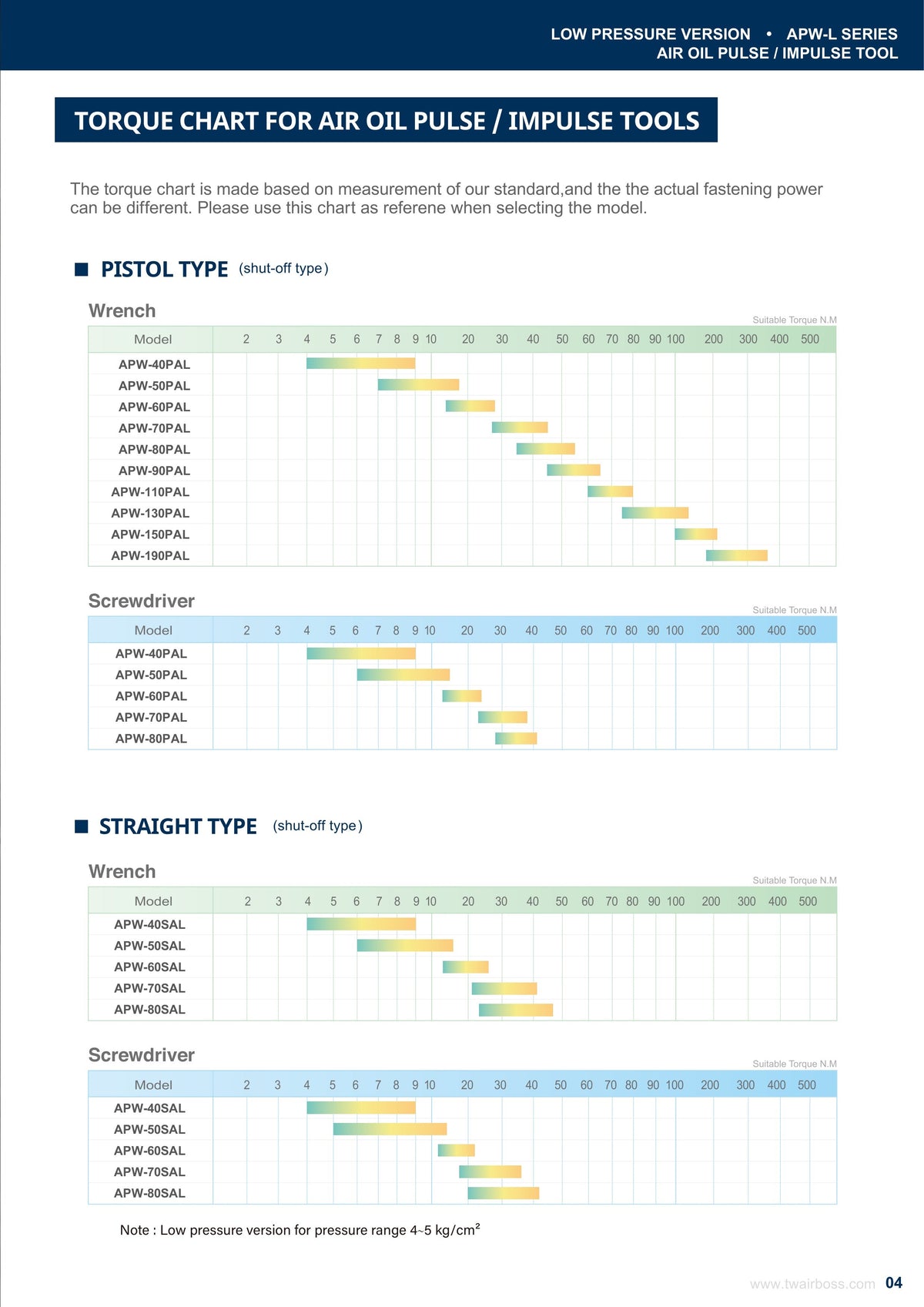

Working Torque Range & Specifications
Working torque varies by output configuration. Review the range for the exact drive or hex configuration below, then include that configuration in your quote request.
APW-80SAL is an AIRBOSS straight-type shut-off air oil pulse / impulse tool for controlled fastening and assembly applications. Designed for low-pressure operation at the catalog-rated 4-5 kg/cm² range.
- Catalog model: APW-80SAL
- Series: APW-L
- Mechanism: Oil Pulse
- Tool form: Straight
- Shut-off type: Shut-off

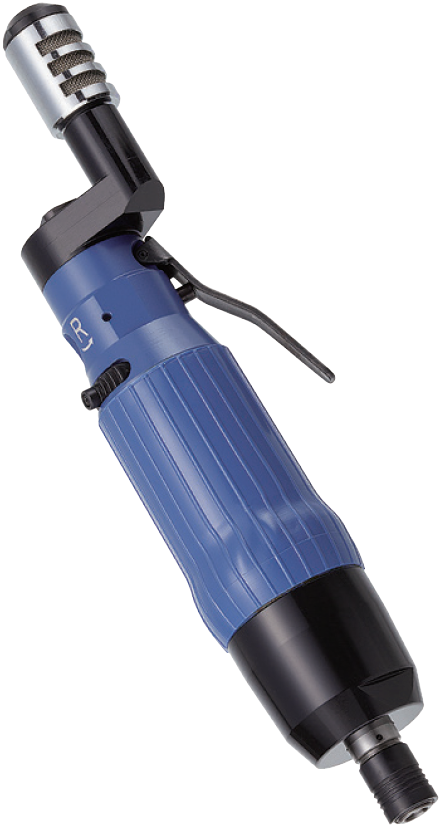

1/4 in Hex Screwdriver
- Store SKU: APW-80SAL-1/4
- Bolt capacity: 8 mm
- Free speed: 4900 rpm
- Working Torque Range: 15-31 ft-lb / 20-42 N·m
- Air inlet: NPT 1/4 in
- Recommended air hose: 8 mm
- Air consumption: 0.54 m³/min
- Weight: 2.64 lb / 1.2 kg
- Overall length: 295 mm
- Air pressure: 4-5 kg/cm²

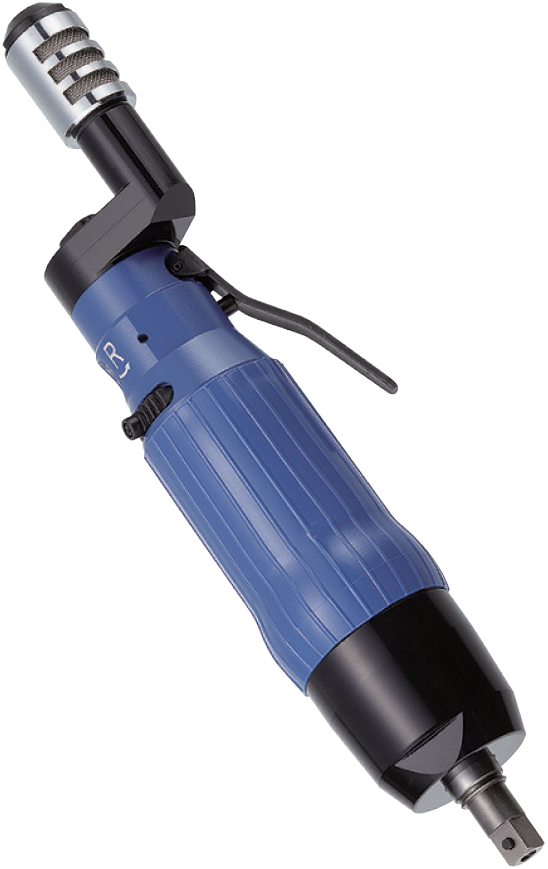

3/8 in Square Drive Wrench
- Store SKU: APW-80SAL-3/8
- Bolt capacity: 8 mm
- Free speed: 4900 rpm
- Working Torque Range: 17-35 ft-lb / 23-47 N·m
- Air inlet: NPT 1/4 in
- Recommended air hose: 8 mm
- Air consumption: 0.54 m³/min
- Weight: 2.64 lb / 1.2 kg
- Overall length: 295 mm
- Air pressure: 4-5 kg/cm²
Store SKUs are normalized from the catalog model and output-drive configuration. Catalog suitable-torque ranges are reference values; actual fastening performance can vary by joint and application.
