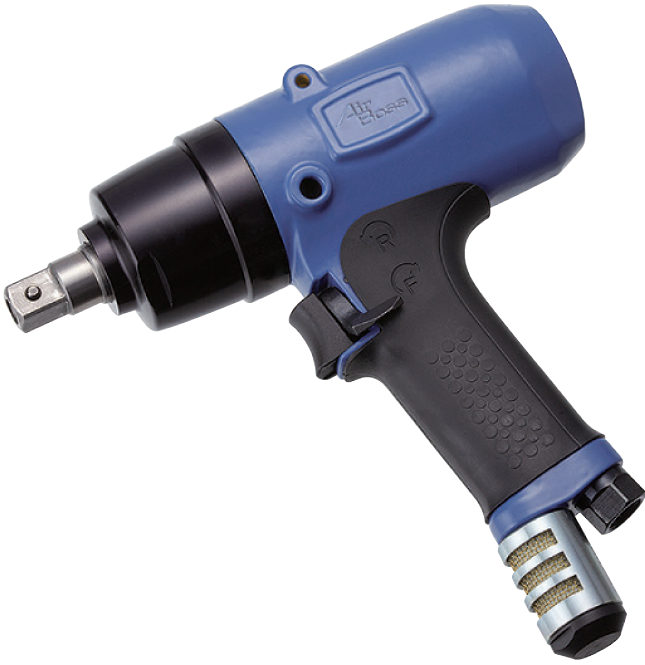

AIRBOSS® AIRBOSS APW-90PA Shut-Off Oil Pulse Tool
SKU APW-90PA-1/2
Type Oil Pulse Tool
Email for Quote
Request a Quote
View working torque range & specifications
18-month factory warranty
Oil Pulse Catalog Data
Working Torque Range & Specifications
Working torque varies by output configuration. Review the range for the exact drive or hex configuration below, then include that configuration in your quote request.
APW-90PA is an AIRBOSS pistol-type shut-off air oil pulse / impulse tool for controlled fastening and assembly applications. Catalog-rated for standard 6.3 kg/cm² air pressure.
- Catalog model: APW-90PA
- Series: APW-PA
- Mechanism: Oil Pulse
- Tool form: Pistol
- Shut-off type: Shut-off
1/2 in Square Drive Wrench
- Store SKU: APW-90PA-1/2
- Bolt capacity: 10 mm
- Free speed: 5000 rpm
- Working Torque Range: 37-59 ft-lb / 50-80 N·m
- Air inlet: NPT 1/4 in
- Recommended air hose: 10 mm
- Air consumption: 0.66 m³/min
- Weight: 3.3 lb / 1.5 kg
- Overall length: 188 mm
- Air pressure: 6.3 kg/cm²
Store SKUs are normalized from the catalog model and output-drive configuration. Catalog suitable-torque ranges are reference values; actual fastening performance can vary by joint and application.
Catalog reference chart. Use the exact working torque range listed above for the selected drive or hex configuration.
