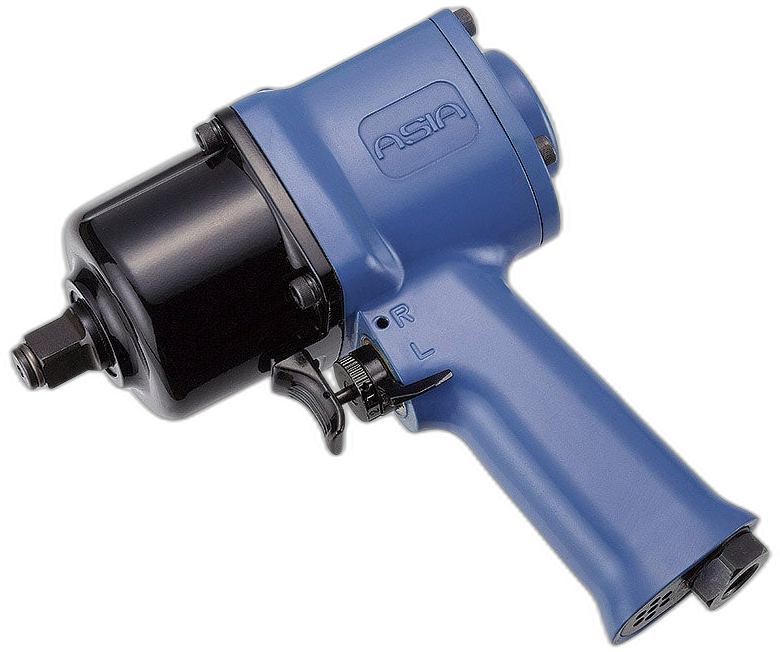

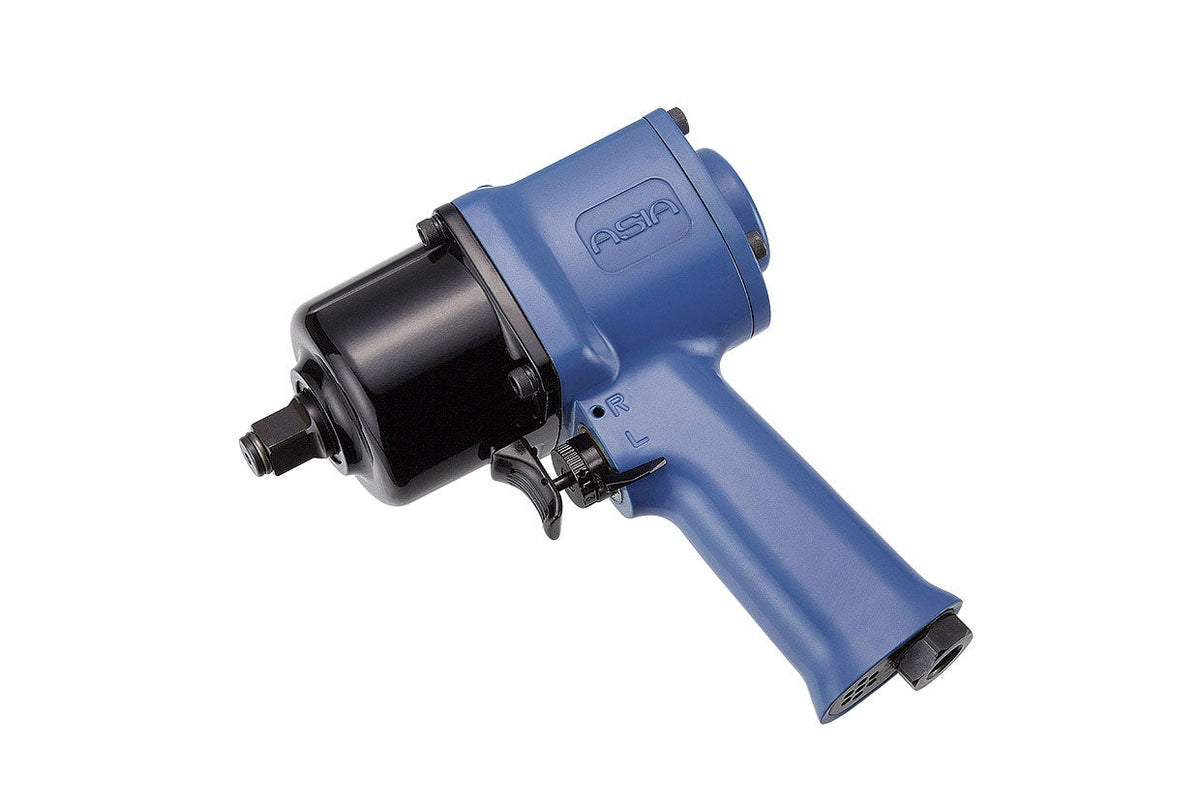

AIRBOSS® AW-100P 1/2" Drive Air Impact Wrench
SKU AW-100P
Type Air Impact Wrench
$224.99
Free shipping on orders US$99+ after discounts (contiguous U.S.). Shipping details
At a glance
Key Specifications
Performance and fit information for this exact model.
Max Torque
598 ft·lb
Drive Size
1/2"
Free Speed
7,500 rpm
Weight
3.90 lb
Air Inlet
1/4"
Hammer Mechanism
Twin Hammer
AW Series Ultra Performance awards: INPEX Gold, IENA Silver, German Design Award Nominee
18-month limited warranty. See full warranty terms.
18-month limited warranty. See full warranty terms.
Product Details
Product Highlights
Part of the AIRBOSS AW Series — an Airboss-engineered steel motor and Twin Hammer clutch in a compact full-metal body, built for daily service in tire shops, fleet bays and repair shops. Backed by an 18-month limited warranty.
Specifications
- Drive: 1/2" square
- Mechanism: Twin Hammer
- Max torque: 598 ft-lbs (810 N·m)
- Working torque: 25–369 ft-lbs
- Free speed: 7,500 RPM
- Overall length: 6.3" (160 mm)
- Weight: 3.9 lbs (1.8 kg)
- Air consumption: 10.6 CFM
- Air inlet: 1/4" NPT
- Recommended hose: 3/8" (10 mm)
- Working pressure: 90 PSI
View all specifications 14 details
Performance
- Max Torque
- 598 ft·lb
- Free Speed
- 7,500 rpm
Tool & Capacity
- Drive Size
- 1/2"
- Hammer Mechanism
- Twin Hammer
- Bolt Capacity
- 18 mm
- Mechanism
- Twin Hammer
- Model
- AW-100P
- Product Type
- Air Impact Wrench
Air Requirements
- Air Inlet
- 1/4"
- Air Consumption
- 0.30 m³/min
- Air Pressure
- 90 PSI
- Recommended Hose
- 10 mm
Dimensions
- Weight
- 3.90 lb
- Overall Length
- 160 mm
Parts & Service
Parts for AW-100P
Open the model-specific exploded view to identify the part number, then contact us for availability.
