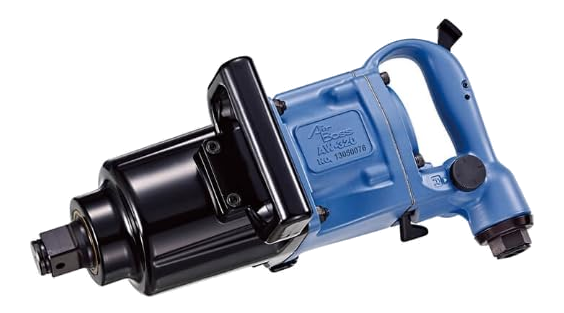

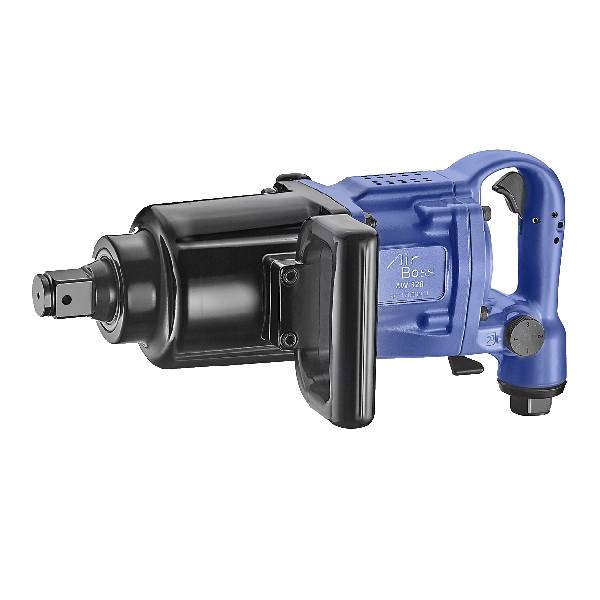

AIRBOSS® AW-322GS 1" Drive Air Impact Wrench — Short Anvil
SKU AW-322GS
Type Air Impact Wrench
$816.99
Free shipping on orders US$99+ after discounts (contiguous U.S.). Shipping details
At a glance
Key Specifications
Performance and fit information for this exact model.
Max Torque
2,100 ft·lb
Drive Size
1"
Free Speed
5,250 rpm
Weight
19.0 lb
Air Inlet
1/2"
Hammer Mechanism
Swing Hammer
AW Series Ultra Performance awards: INPEX Gold, IENA Silver, German Design Award Nominee
18-month limited warranty. See full warranty terms.
18-month limited warranty. See full warranty terms.
Product Details
Product Highlights
Part of the AIRBOSS AW Series — an AIRBOSS-engineered steel motor and Swing Hammer clutch in a full-metal 1" drive body with a short anvil for standard-reach truck, bus and heavy-equipment fasteners. Built for tire bays, fleet service and heavy-duty repair, and backed by an 18-month limited warranty.
Specifications
- Drive: 1" square
- Mechanism: Swing Hammer
- Max torque: 2,100 ft-lbs
- Anvil: short
- Working pressure: 90 PSI
Air Boss AW-322GS — part of the AIRBOSS Ultra Performance AW series lineup.
View all specifications 13 details
Performance
- Max Torque
- 2,100 ft·lb
- Free Speed
- 5,250 rpm
Tool & Capacity
- Drive Size
- 1"
- Hammer Mechanism
- Swing Hammer
- Bolt Capacity
- 41 mm
- Model
- AW-322GS
- Product Type
- Air Impact Wrench
Air Requirements
- Air Inlet
- 1/2"
- Air Consumption
- 0.6 m³/min
- Air Pressure
- 90 PSI
- Recommended Hose
- 12.7 mm
Dimensions
- Weight
- 19.0 lb
- Overall Length
- 370 mm
