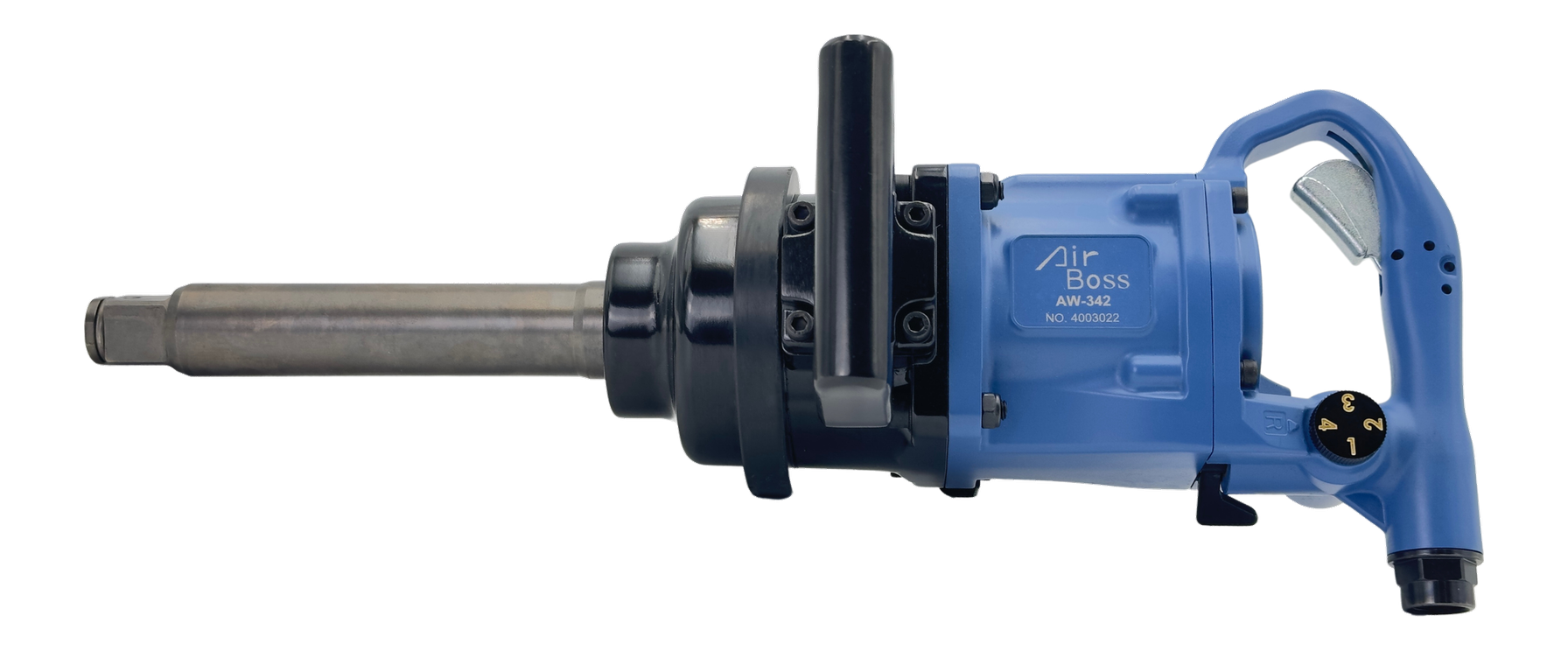

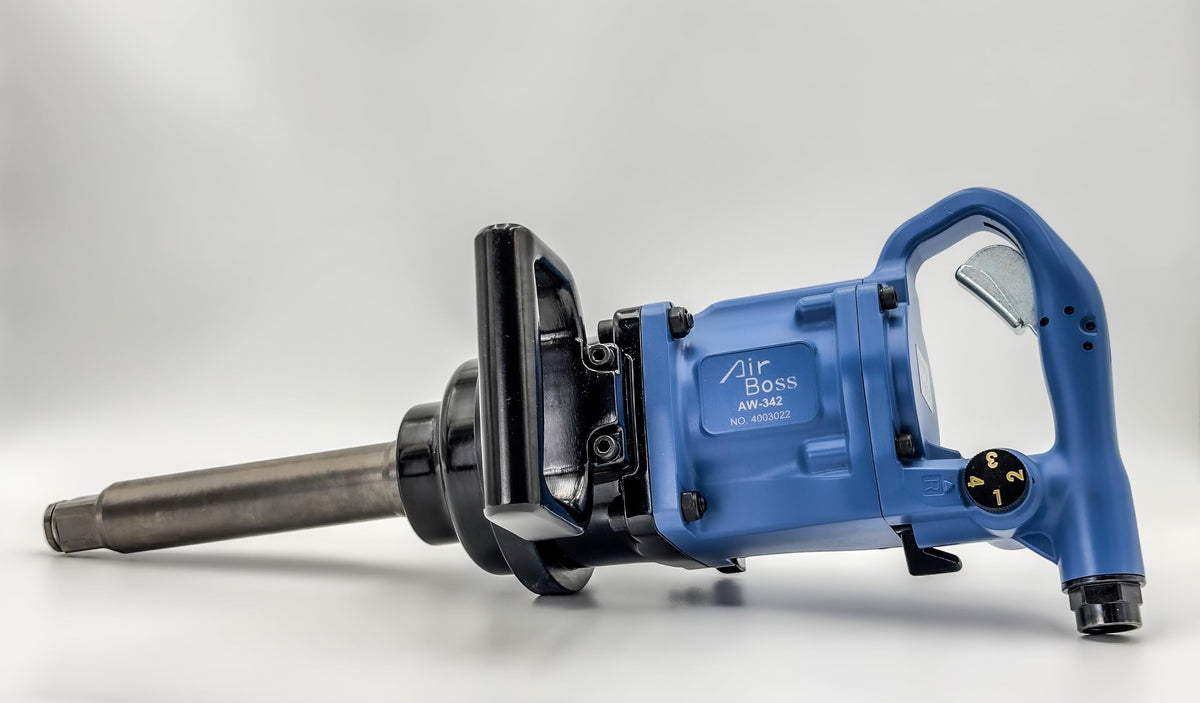

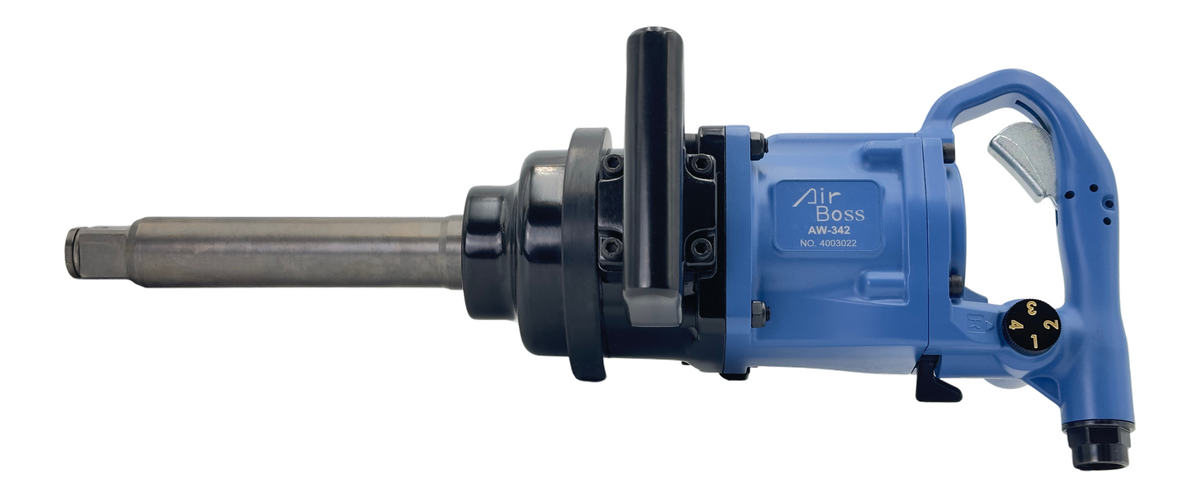

AIRBOSS AW-342GL 1" Drive Air Impact Wrench — 8" Extended Anvil
SKU AW-342GL
Type Air Impact Wrench
$599.99
Free shipping on orders US$99+ after discounts (contiguous U.S.). Shipping details
At a glance
Key Specifications
Performance and fit information for this exact model.
Max Torque
2,730 ft·lb
Drive Size
1"
Free Speed
3,780 rpm
Weight
23.3 lb
Air Inlet
1/2"
Hammer Mechanism
Swing Hammer

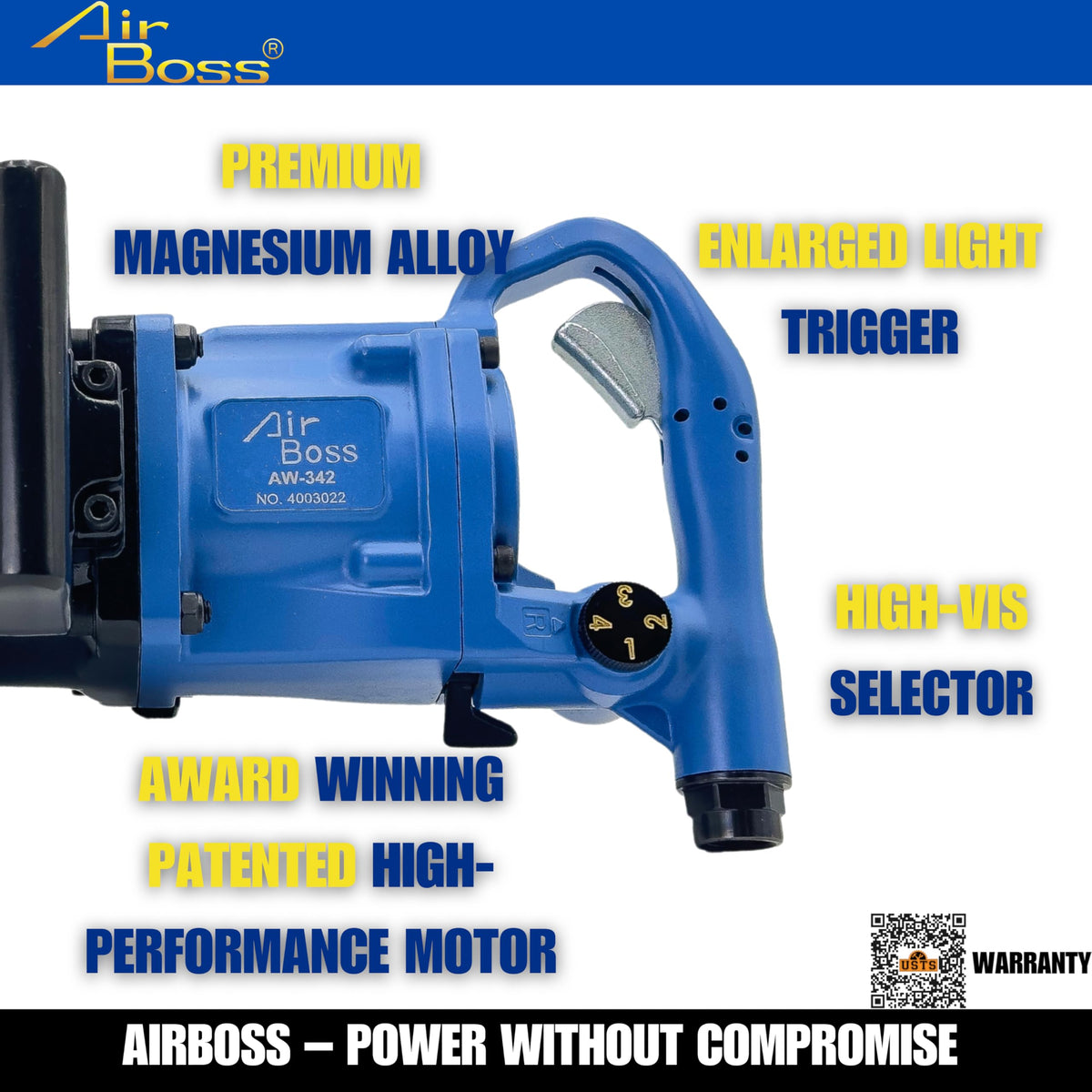

- FULL-METAL DURABILITY AT COMPOSITE-TOOL WEIGHT — Most lightweight 1-inch impact wrenches reach low weight by switching to composite housings and aluminum motors. The AW-342GL pairs a magnesium-alloy housing with an Airboss-engineered steel motor and Swing-Hammer mechanism, delivering full-metal durability at just 23.3 lbs — weight rivaling composite tools.

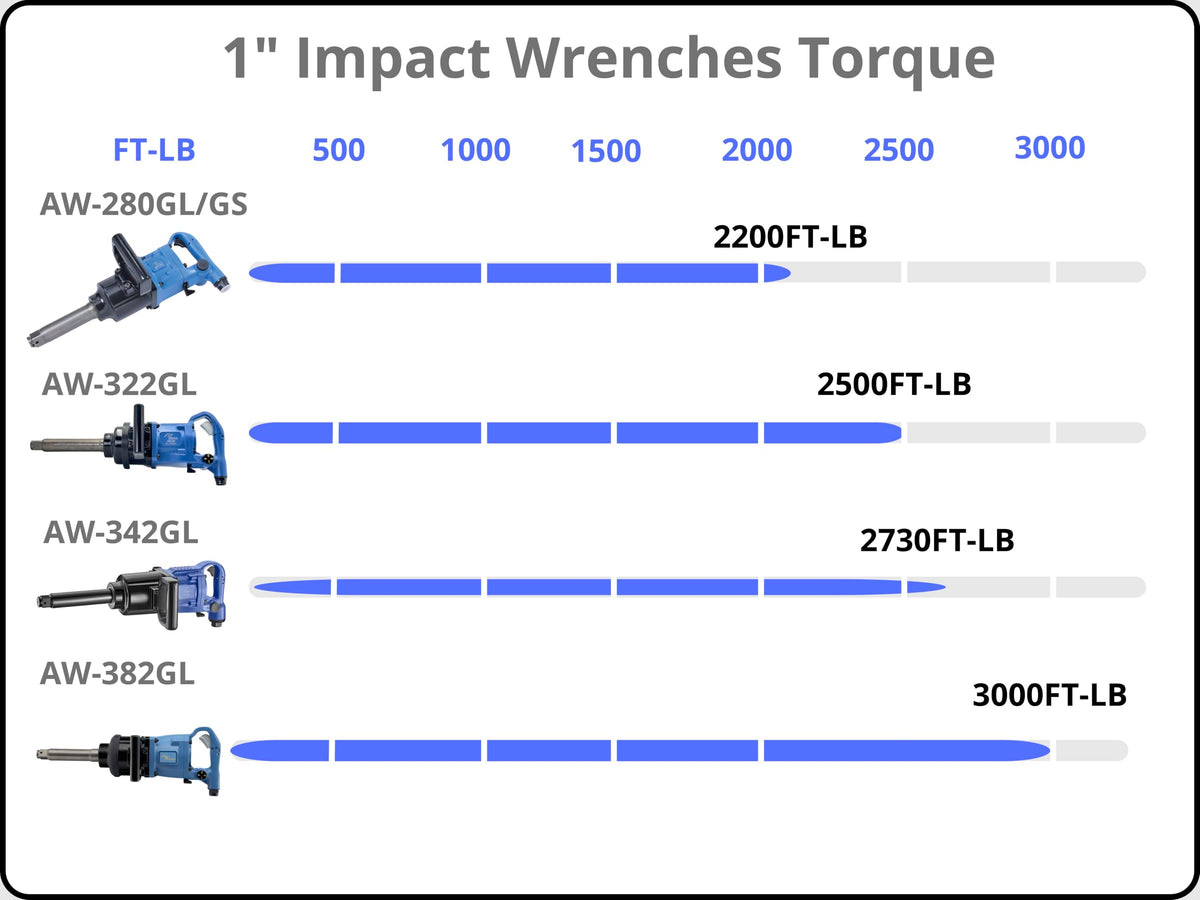

- 2,730 FT-LBS NUT-BUSTING TORQUE WITH SWING-HAMMER MECHANISM — Delivers 2,730 ft-lbs of maximum torque at 3,780 RPM driven by a swing-hammer clutch, breaking the most stubborn semi-truck lug nuts, trailer hub bolts, and seized axle fasteners that lower-capacity 1-inch impact wrenches stall against.
- 4-STAGE TORQUE CONTROL, STEEL MOTOR BUILT TO OUTLAST — Four-position output selector (Level 1 to 4) dials down on aluminum wheels or ramps up for rusted hardware. The Airboss-engineered steel motor extends motor life by 100% and overall tool life by 30% versus standard iron-motor competitors.
- INTERNATIONALLY RECOGNIZED DESIGN — Airboss-engineered steel motor recognized with the 2011 INPEX Gold Medal (Pittsburgh), 2011 IENA Silver Medal (Nuremberg), and 2020 German Design Award Nominee — three international honors validating the proprietary motor design behind the AW series.
- SHOP-READY PNEUMATIC POWER — Operates at 90 PSI standard pressure with 1/2 inch NPT air inlet and 1/2 inch (12.7 mm) hose recommended. Air consumption 21.2 CFM (0.6 m³/min). Includes 18-month limited warranty for commercial fleet and heavy-duty truck service.
18-month limited warranty. See full warranty terms.
View all specifications 14 details
Performance
- Max Torque
- 2,730 ft·lb
- Free Speed
- 3,780 rpm
Tool & Capacity
- Drive Size
- 1"
- Hammer Mechanism
- Swing Hammer
- Bolt Capacity
- 41 mm
- Model
- AW-342GL
- Product Type
- Air Impact Wrench
Air Requirements
- Air Inlet
- 1/2"
- Air Consumption
- 21.2 CFM / 0.6 m³/min
- Air Pressure
- 90 PSI
- Recommended Hose
- 1/2 inch (12.7 mm)
Dimensions
- Weight
- 23.3 lb
- Overall Length
- 540 mm
Kit Details

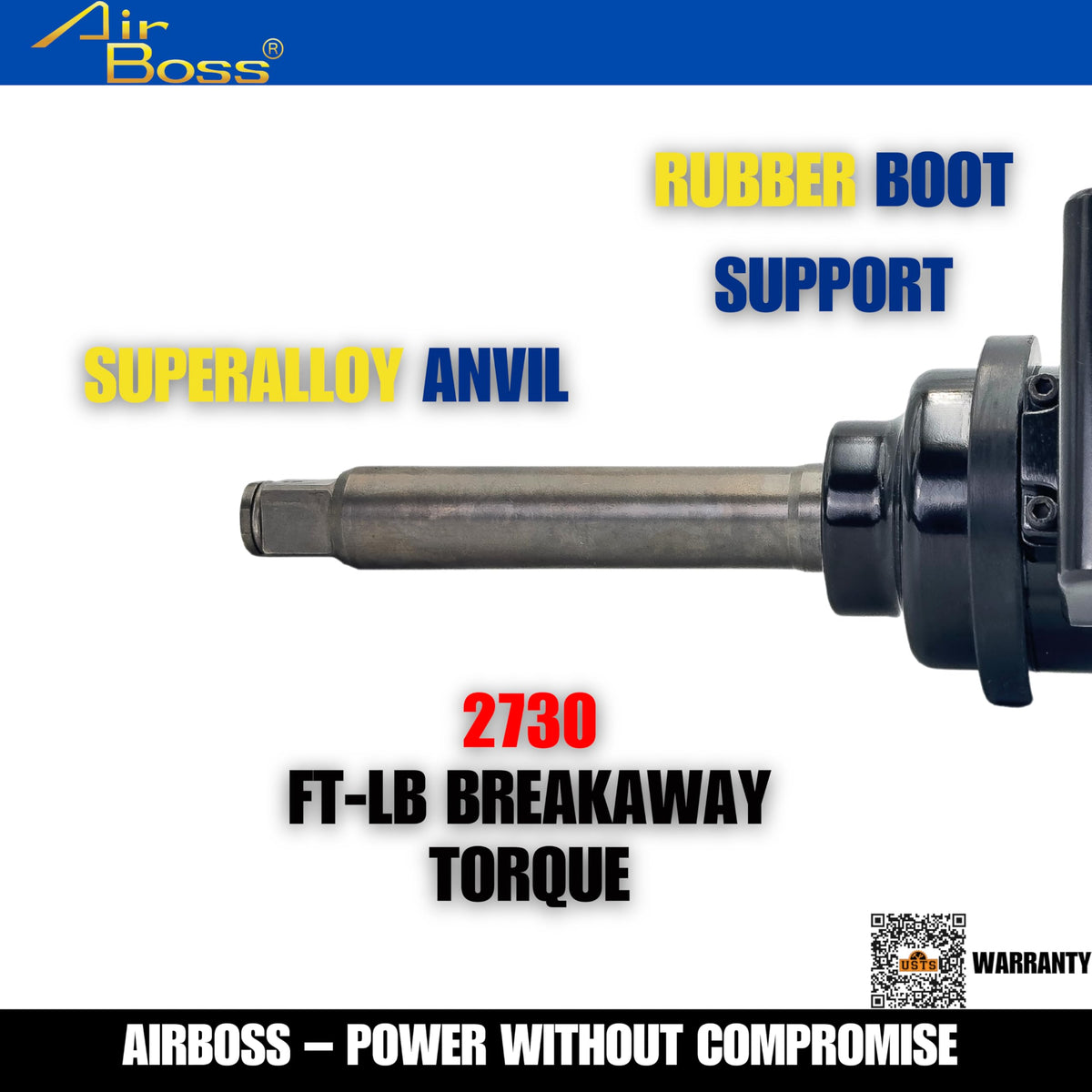

- Anvil Type
- 8" extended anvil
