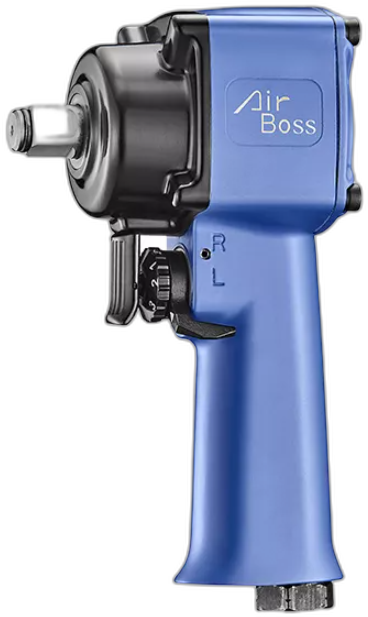

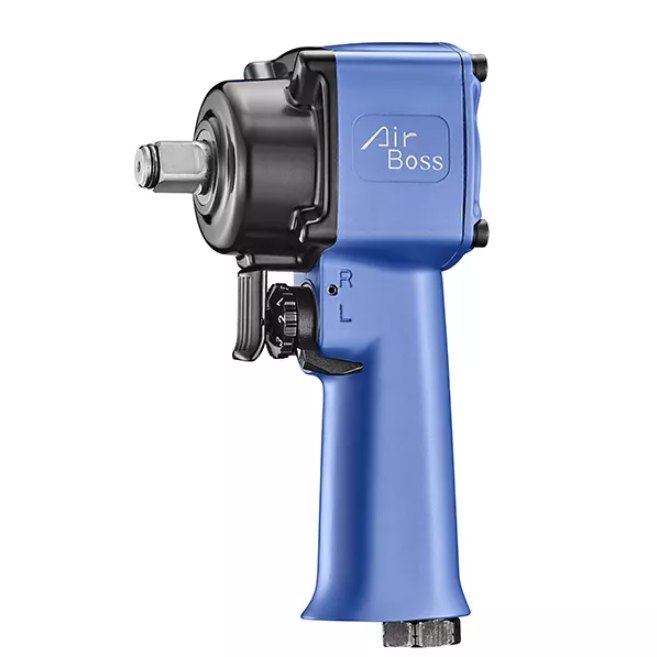

AIRBOSS® AW-80T 1/2" Drive Stubby Air Impact Wrench
SKU AW-80T
Type Air Impact Wrench
$186.99
Free shipping on orders US$99+ after discounts (contiguous U.S.). Shipping details
At a glance
Key Specifications
Performance and fit information for this exact model.
Max Torque
450 ft·lb
Drive Size
1/2"
Free Speed
9,000 rpm
Weight
2.62 lb
Air Inlet
1/4"
Hammer Mechanism
Twin Hammer
AW Series Ultra Performance awards: INPEX Gold, IENA Silver, German Design Award Nominee
18-month limited warranty. See full warranty terms.
18-month limited warranty. See full warranty terms.
Product Details
Product Highlights
Part of the AIRBOSS AW Series — an Airboss-engineered steel motor and Twin Hammer clutch in a compact full-metal body. The stubby profile reaches into engine bays and wheel wells where full-size wrenches will not fit. Built for daily service in tire shops, fleet bays and repair shops, and backed by an 18-month limited warranty.
Specifications
- Drive: 1/2" square
- Mechanism: Twin Hammer
- Max torque: 450 ft-lbs (610 N·m)
- Working torque: 25–243 ft-lbs
- Free speed: 9,000 RPM
- Overall length: 7.0" (177 mm)
- Weight: 2.62 lbs (1.19 kg)
- Air consumption: 10.6 CFM
- Air inlet: 1/4" NPT
- Recommended hose: 3/8" (10 mm)
- Working pressure: 90 PSI
View all specifications 15 details
Performance
- Max Torque
- 450 ft·lb
- Free Speed
- 9,000 rpm
Tool & Capacity
- Drive Size
- 1/2"
- Hammer Mechanism
- Twin Hammer
- Bolt Capacity
- 15 mm
- Mechanism
- Twin Hammer
- Model
- AW-80T
- Product Type
- Air Impact Wrench
Air Requirements
- Air Inlet
- 1/4"
- Air Consumption
- 0.3 m³/min
- Air Pressure
- 90 PSI
- Recommended Hose
- 10 mm
Dimensions
- Weight
- 2.62 lb
- Overall Length
- 177 mm
- Side Length
- 95 mm
Parts & Service
Parts for AW-80T
Open the model-specific exploded view to identify the part number, then contact us for availability.
