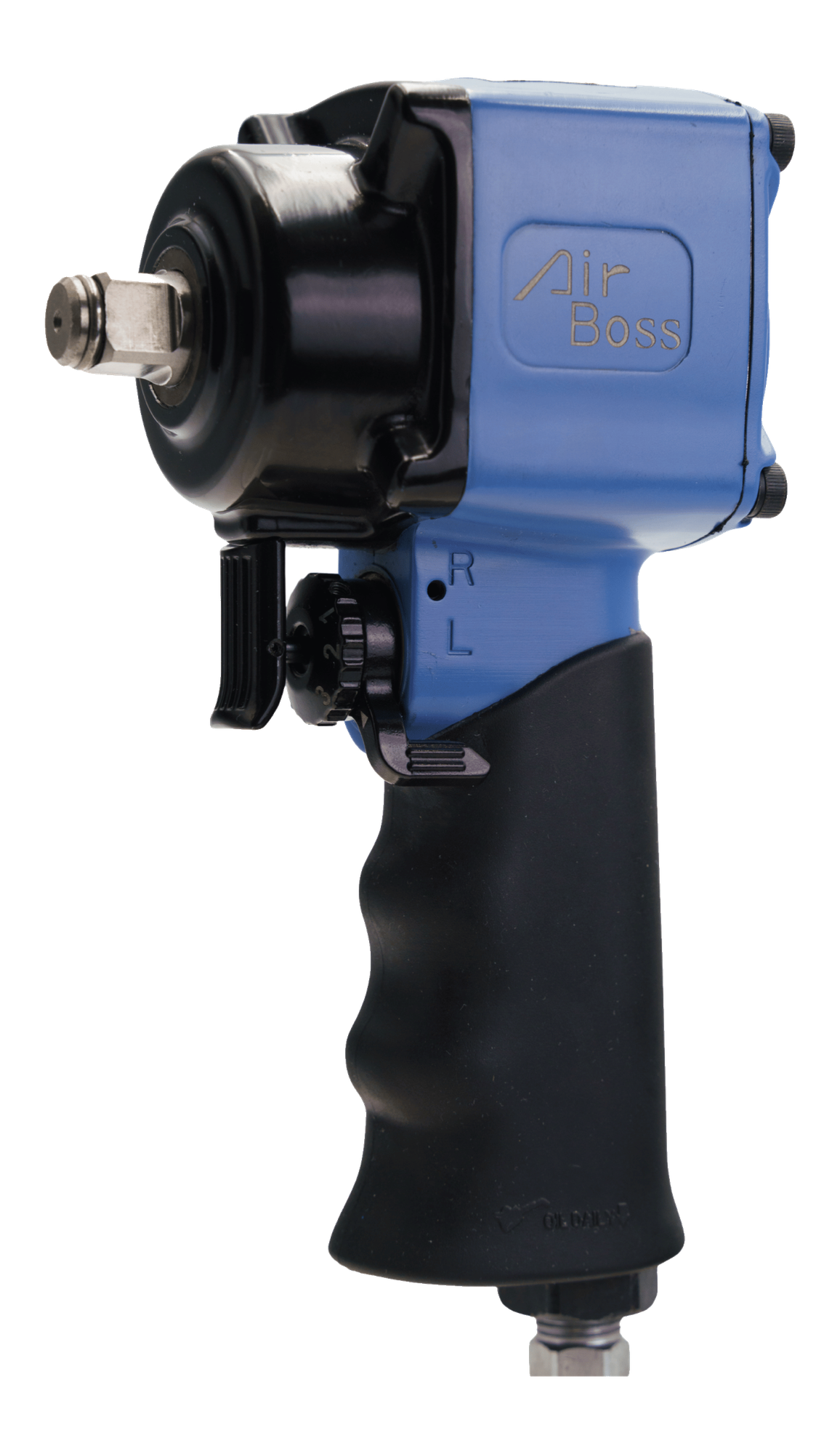

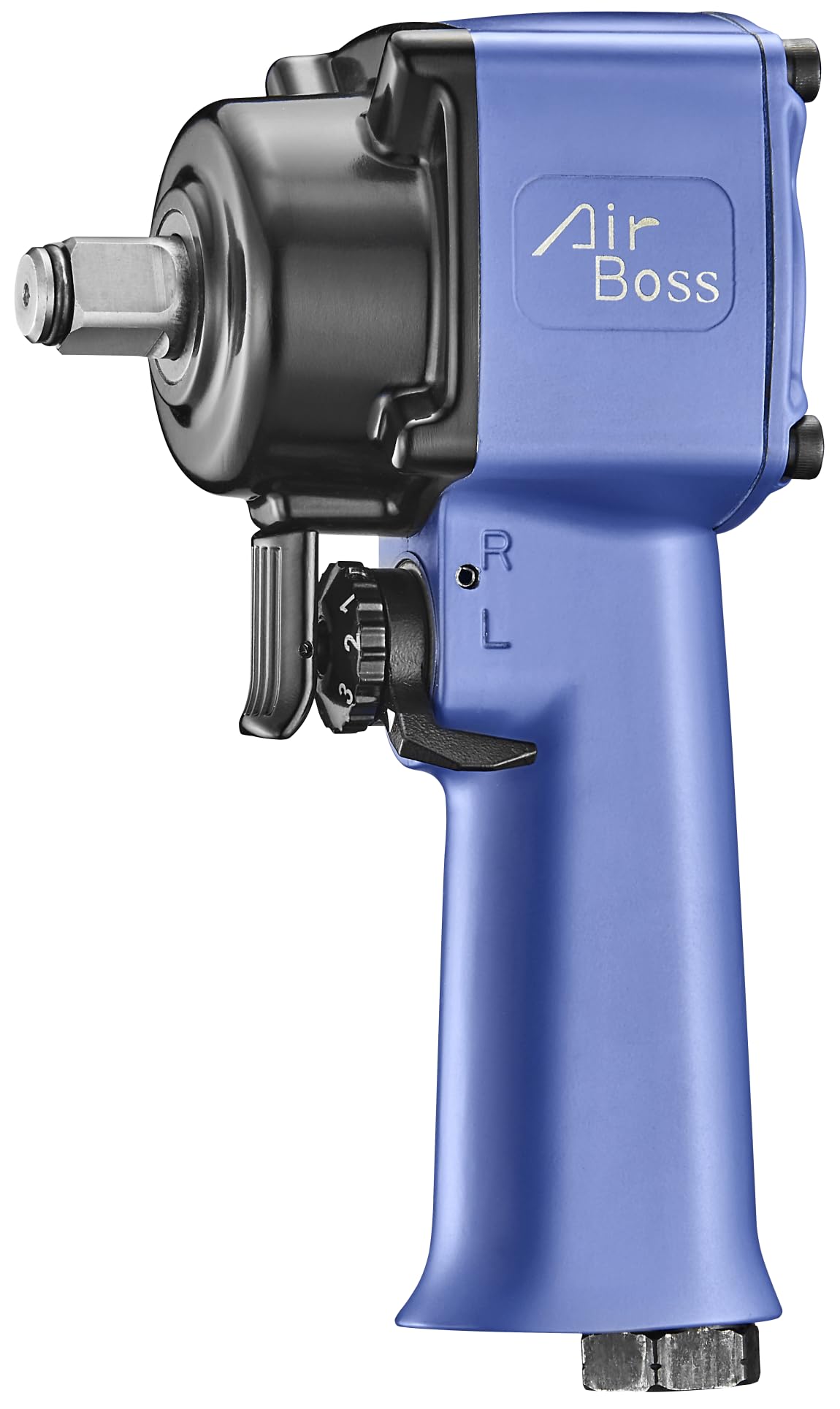

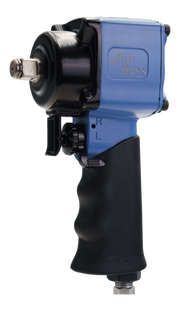

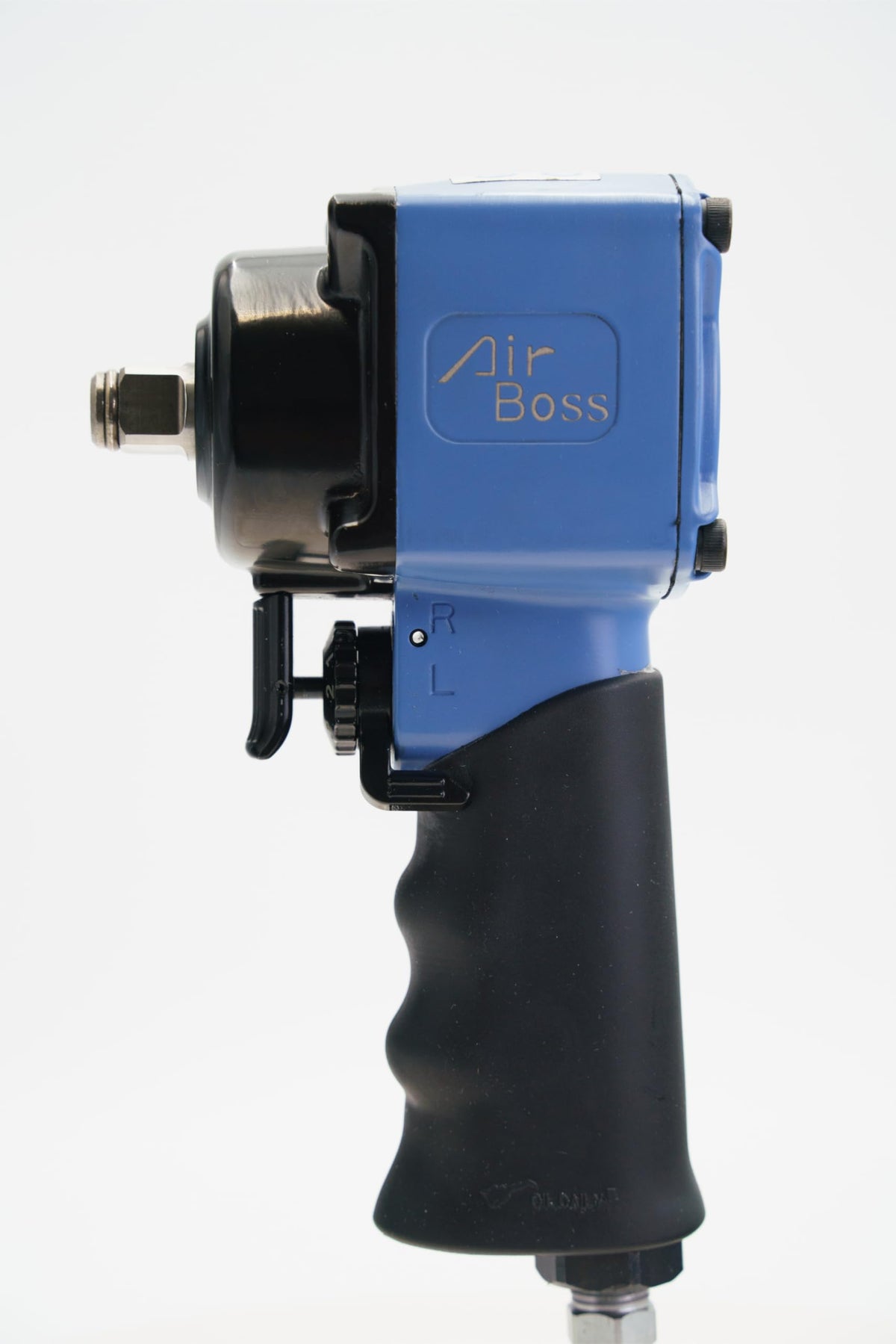

AIRBOSS® AW-90J 1/2" Drive Air Impact Wrench
SKU AW-90J
Type Air Impact Wrench
$140.99
Free shipping on orders US$99+ after discounts (contiguous U.S.). Shipping details
At a glance
Key Specifications
Performance and fit information for this exact model.

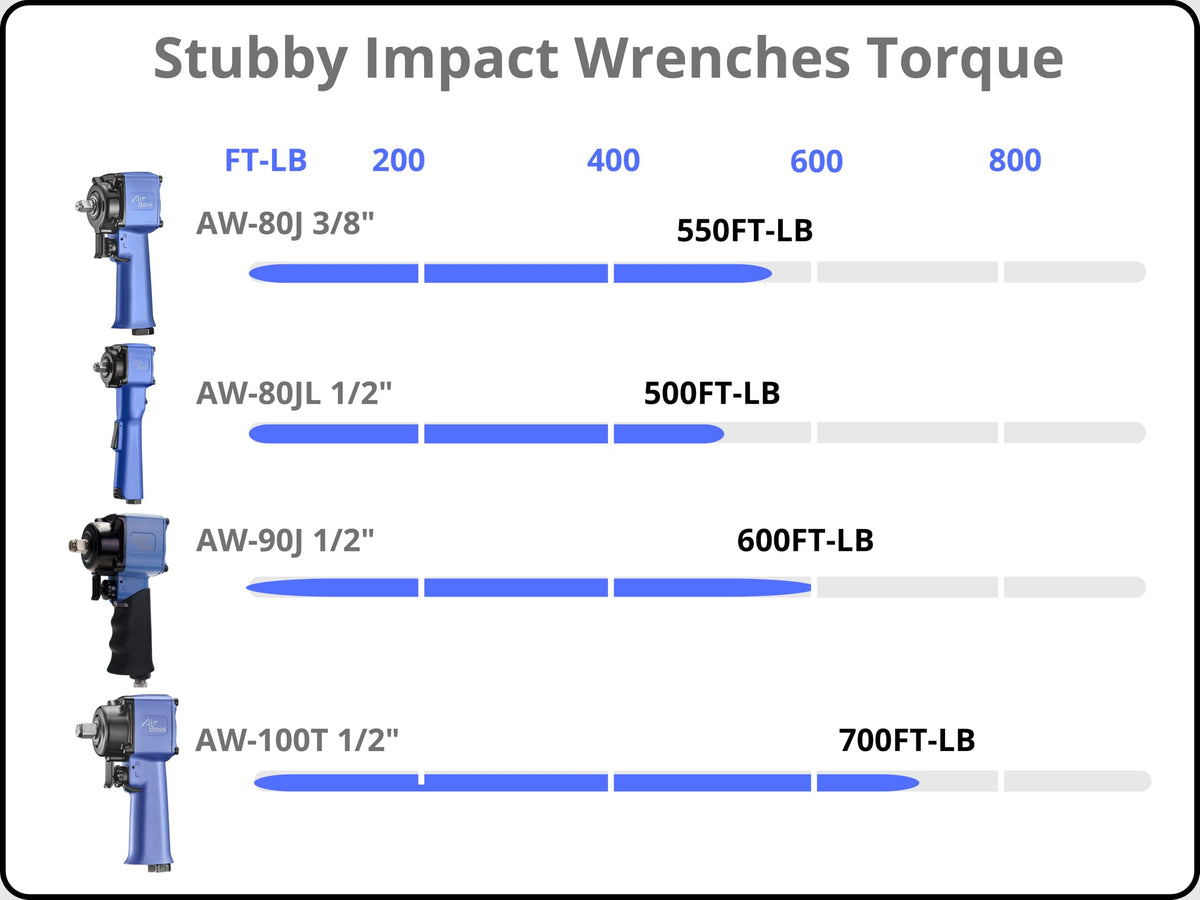

Max Torque
600 ft·lb
Drive Size
1/2"
Free Speed
9,000 rpm
Weight
2.9 lb
Air Inlet
1/4"
Hammer Mechanism
Jumbo Hammer
AW Series Ultra Performance awards: INPEX Gold, IENA Silver, German Design Award Nominee
18-month limited warranty. See full warranty terms.
18-month limited warranty. See full warranty terms.
Product Details
Product Highlights

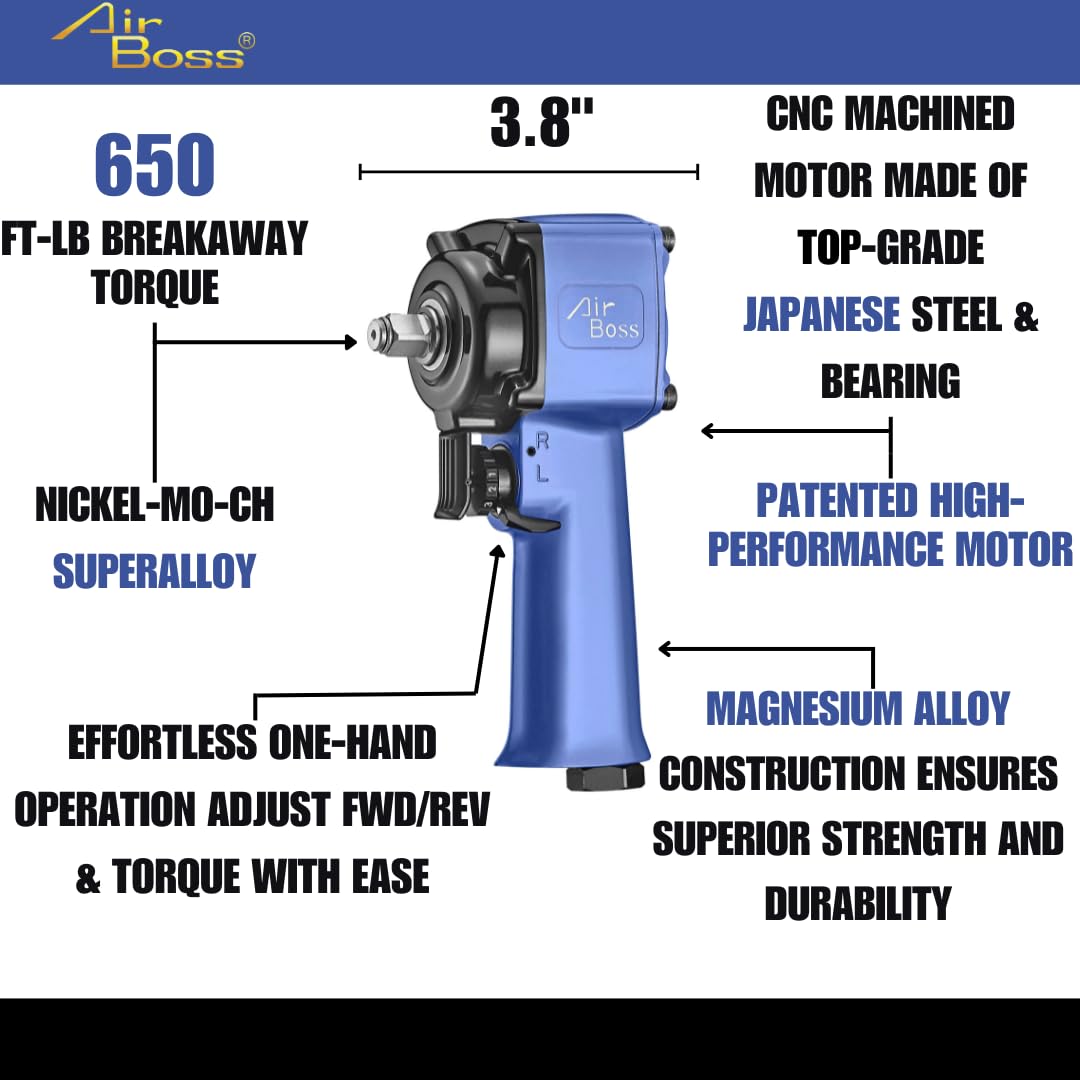

- FULL-METAL DURABILITY AT COMPOSITE-TOOL WEIGHT - The AW-90J pairs a magnesium-alloy housing with an AIRBOSS steel motor and Jumbo Hammer mechanism, giving this 1/2" stubby air impact wrench a durable 2.9 lb build.
- 600 FT-LBS IN 3.9 INCHES - Breakaway torque and 9,000 RPM free speed help remove stubborn lug nuts and bolts in engine bays, suspension wells, and other tight-clearance repair jobs.

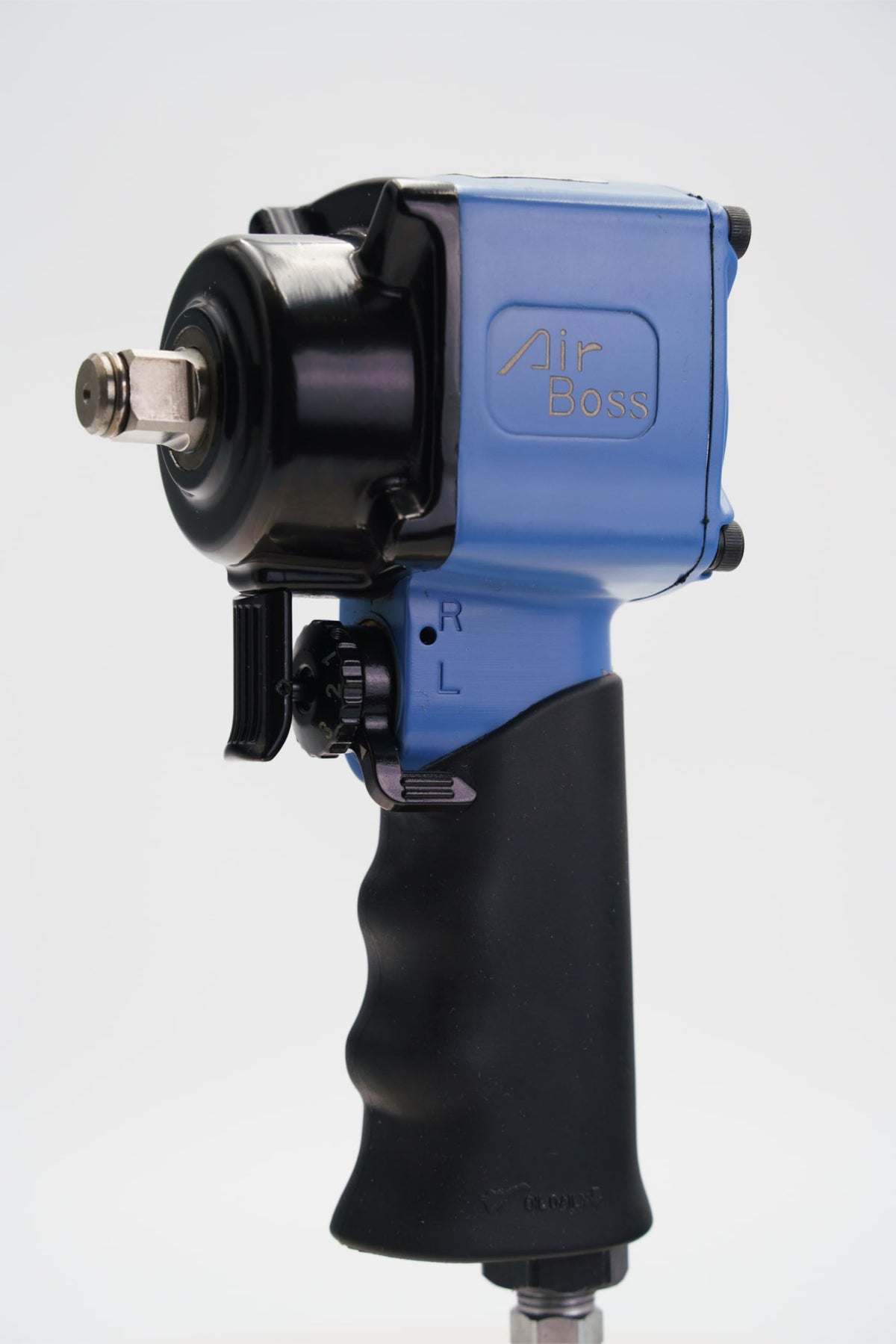

- JUMBO HAMMER STUBBY ACCESS - Compact 99 mm body keeps this 1/2" impact wrench maneuverable in confined engine bays, brake jobs, and tire shop work where a full-size tool will not fit.
- STEEL MOTOR BUILT TO OUTLAST - AIRBOSS steel motor is designed for longer service life and stable torque output over daily duty cycles, backed by INPEX Gold, IENA Silver, and German Design Award Nominee recognition.
- SHOP-AIR READY SPECS - Runs on standard shop air at 90 PSI, with a 3/8 inch (10 mm) hose recommended and 10.6 CFM (0.3 m3/min) air consumption for steady, reliable airflow through long shifts, backed by an 18-month limited warranty.
- ERGONOMIC OVER-MOLDED GRIP - A rubber over-molded grip gives a secure, non-slip hold and cushions vibration through long shifts, so you keep control and comfort during repeated lug nut, brake, and suspension work.
View all specifications 14 details
Performance
- Max Torque
- 600 ft·lb
- Free Speed
- 9,000 rpm
Tool & Capacity
- Drive Size
- 1/2"
- Hammer Mechanism
- Jumbo Hammer
- Bolt Capacity
- 15 mm
- Model
- AW-90J
- Product Type
- Air Impact Wrench
Air Requirements
- Air Inlet
- 1/4"
- Air Consumption
- 10.6 CFM / 0.3 m³/min
- Air Pressure
- 90 PSI
- Recommended Hose
- 3/8 inch (10 mm)
Dimensions
- Weight
- 2.9 lb
- Overall Length
- 177 mm
- Side Length
- 99 mm
Parts & Service
Parts for AW-90J
Open the model-specific exploded view to identify the part number, then contact us for availability.
