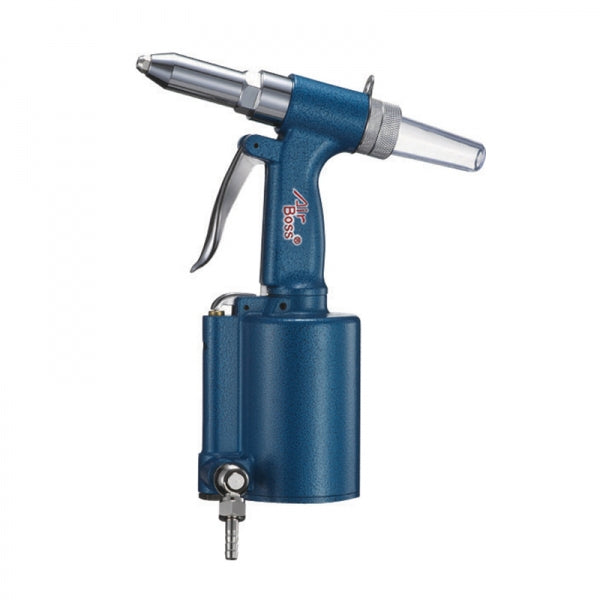

AIRBOSS® HR-102S Industrial Pneumatic Tool
SKU HR-102S
Type Air Hydraulic Riveter
Email for Quote
Request a Quote
At a glance
Key Specifications
Performance and fit information for this exact model.
Traction Force
3055 lb
Nosepiece Range
2.4~6.4 mm
Stroke
14 mm
Weight
4.4 lb
Overall Length
300 mm
18-month limited warranty. See full warranty terms.
Product Details
Product Highlights
AIRBOSS HR-102S is part of the industrial pneumatic tool catalog. Product photos are shown for model identification. Request a quote to confirm specifications, configuration, lead time, and pricing.
View all specifications 11 details
Performance
- Traction Force
- 3055 lb
Tool & Capacity
- Nosepiece Range
- 2.4~6.4 mm
- Stroke
- 14 mm
- Model
- HR-102S
- Product Type
- Air Hydraulic Riveter
Air Requirements
- Air Consumption
- 0.4 m³/min
- Air Inlet
- 1/4"
- Air Pressure
- 6.3 kg/cm²
- Recommended Hose
- 6.4 mm
Dimensions
- Weight
- 4.4 lb
- Overall Length
- 300 mm
Parts & Service
Parts for HR-102S
Open the model-specific exploded view to identify the part number, then contact us for availability.
