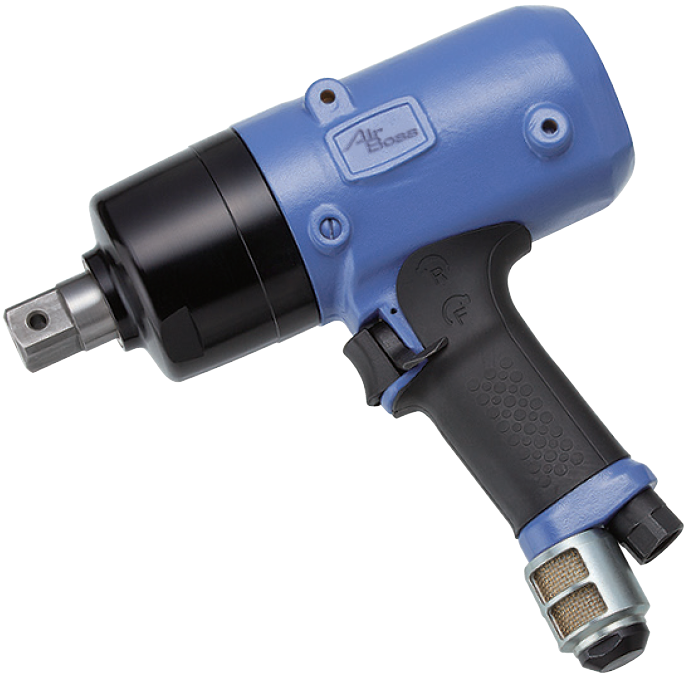

AIRBOSS® PW-150PR Non-Shut-Off Oil Pulse Tool
SKU PW-150PR-3/4
Type Oil Pulse Tool
Key Specifications
Performance and fit information for this exact model.
Working Torque Range & Specifications
Working torque varies by output configuration. Review the range for the exact drive or hex configuration below, then include that configuration in your quote request.
PW-150PR is an AIRBOSS pistol-type non shut-off air oil pulse / impulse tool for controlled fastening and assembly applications. Catalog-rated for standard 6.3 kg/cm² air pressure.
- Catalog model: PW-150PR
- Series: PW-R
- Mechanism: Oil Pulse
- Tool form: Pistol
- Shut-off type: Non shut-off
3/4 in Square Drive Wrench
- Store SKU: PW-150PR-3/4
- Bolt capacity: 12-16 mm
- Free speed: 3800 rpm
- Working Torque Range: 93-185 ft-lb / 125-250 N·m
- Air inlet: NPT 3/8 in
- Recommended air hose: 13 mm
- Air consumption: 1.26 m³/min
- Weight: 6.82 lb / 3.1 kg
- Overall length: 216 mm
- Air pressure: 6.3 kg/cm²
Store SKUs are normalized from the catalog model and output-drive configuration. Catalog suitable-torque ranges are reference values; actual fastening performance can vary by joint and application.
View all specifications 15 details
Performance
- Working Torque
- 93-185 ft-lb / 125-250 N·m
- Free Speed
- 3800 rpm
Tool & Capacity
- Output
- 3/4 in Square Drive Wrench
- Bolt Capacity
- 12-16 mm
- Mechanism
- Oil Pulse
- Model
- PW-150PR
- Product Type
- Oil Pulse Tool
- Shut-Off Type
- Non shut-off
- Tool Form
- Pistol
Air Requirements
- Air Inlet
- NPT 3/8 in
- Air Consumption
- 1.26 m³/min
- Air Pressure
- 6.3 kg/cm²
- Recommended Hose
- 13 mm
Dimensions
- Weight
- 6.82 lb / 3.1 kg
- Overall Length
- 216 mm

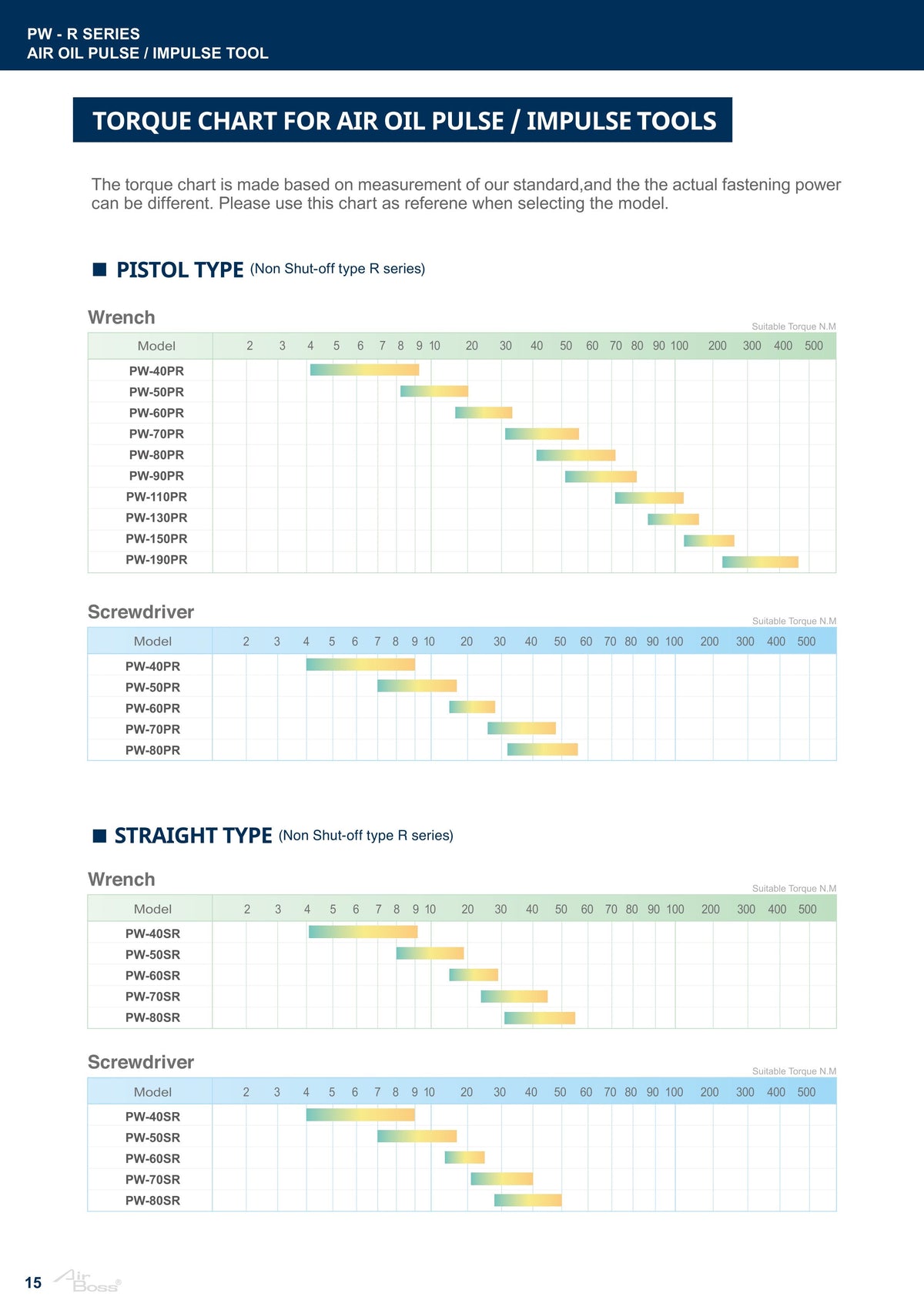

Catalog reference chart. Use the exact working torque range listed above for the selected drive or hex configuration.
Parts for PW-150PR-3/4
Open the model-specific exploded view to identify the part number, then contact us for availability.
