AIRBOSS® AIRBOSS PW-60SR Straight Non-Shut-Off Oil Pulse Tool
SKU PW-60SR-1/4
Type Oil Pulse Tool
Email for Quote
Request a Quote
View working torque range & specifications
18-month factory warranty
Oil Pulse Catalog Data
Working Torque Range & Specifications
Working torque varies by output configuration. Review the range for the exact drive or hex configuration below, then include that configuration in your quote request.
PW-60SR is an AIRBOSS straight-type non shut-off air oil pulse / impulse tool for controlled fastening and assembly applications. Catalog-rated for standard 6.3 kg/cm² air pressure.
- Catalog model: PW-60SR
- Series: PW-R
- Mechanism: Oil Pulse
- Tool form: Straight
- Shut-off type: Non shut-off

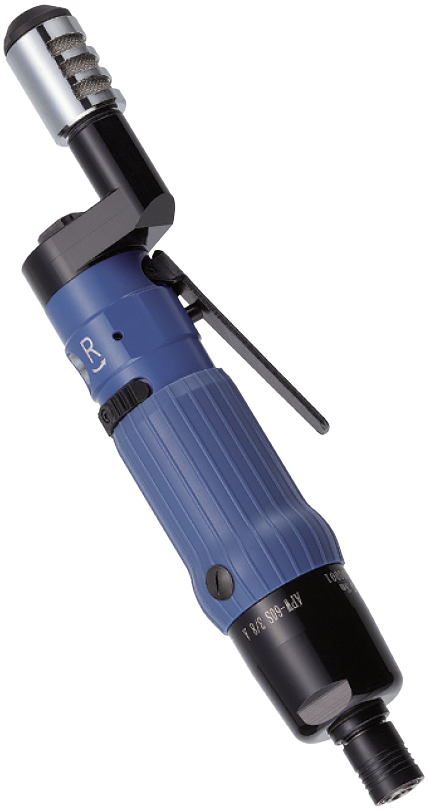

1/4 in Hex Screwdriver
- Store SKU: PW-60SR-1/4
- Bolt capacity: 6 mm
- Free speed: 6800 rpm
- Working Torque Range: 9-18 ft-lb / 14-25 N·m
- Air inlet: NPT 1/4 in
- Recommended air hose: 8 mm
- Air consumption: 0.42 m³/min
- Weight: 1.98 lb / 0.9 kg
- Overall length: 267 mm
- Air pressure: 6.3 kg/cm²

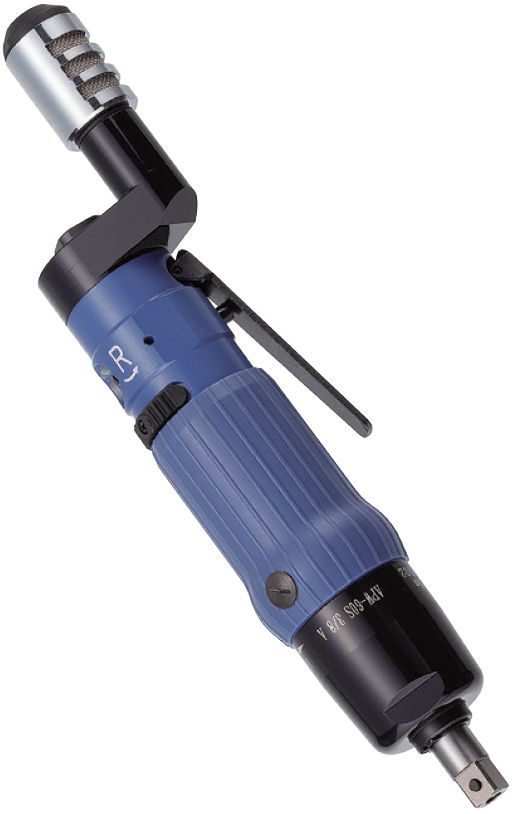

3/8 in Square Drive Wrench
- Store SKU: PW-60SR-3/8
- Bolt capacity: 6 mm
- Free speed: 6800 rpm
- Working Torque Range: 11-21 ft-lb / 15-29 N·m
- Air inlet: NPT 1/4 in
- Recommended air hose: 8 mm
- Air consumption: 0.42 m³/min
- Weight: 1.98 lb / 0.9 kg
- Overall length: 267 mm
- Air pressure: 6.3 kg/cm²
Store SKUs are normalized from the catalog model and output-drive configuration. Catalog suitable-torque ranges are reference values; actual fastening performance can vary by joint and application.

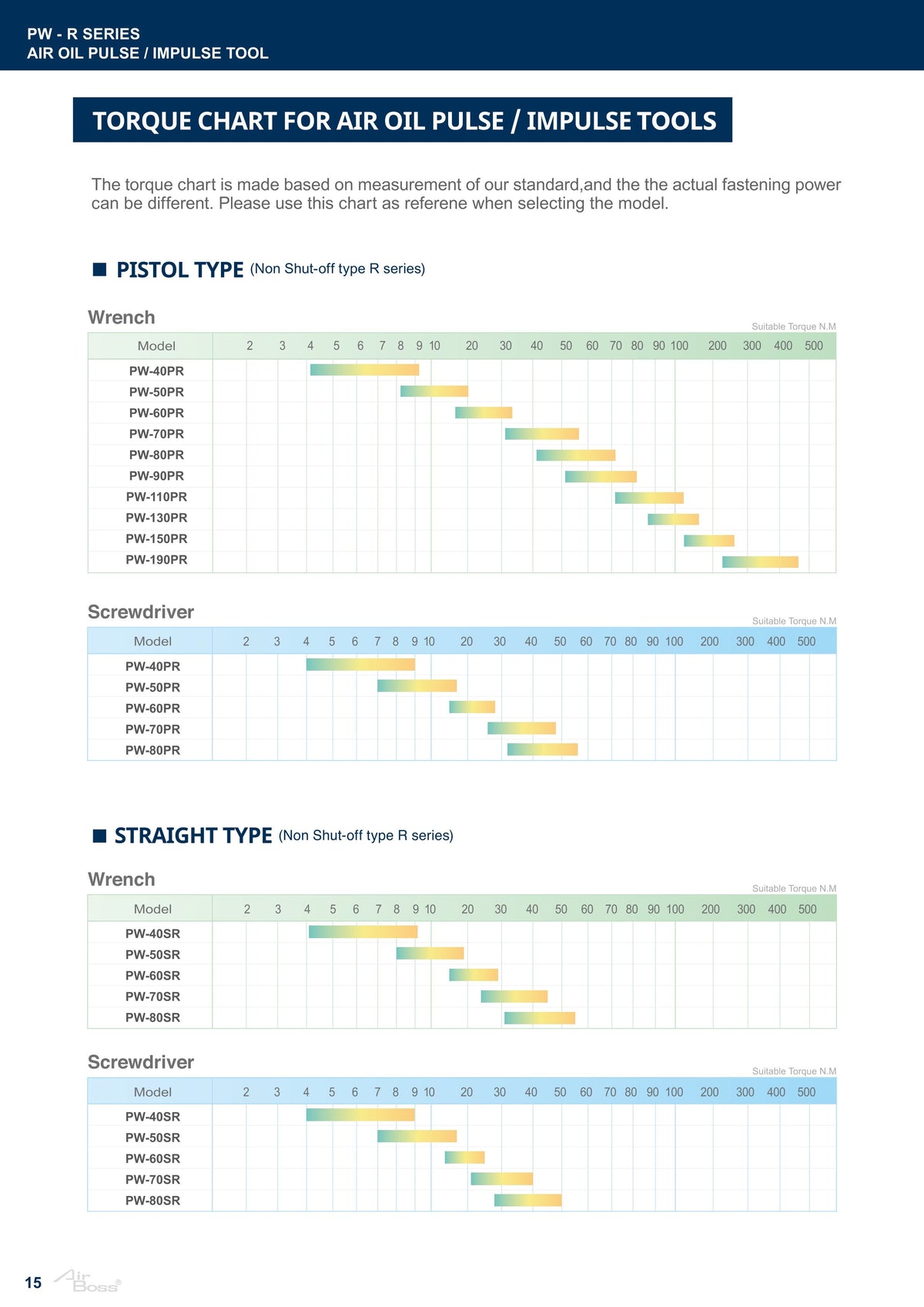

Catalog reference chart. Use the exact working torque range listed above for the selected drive or hex configuration.
