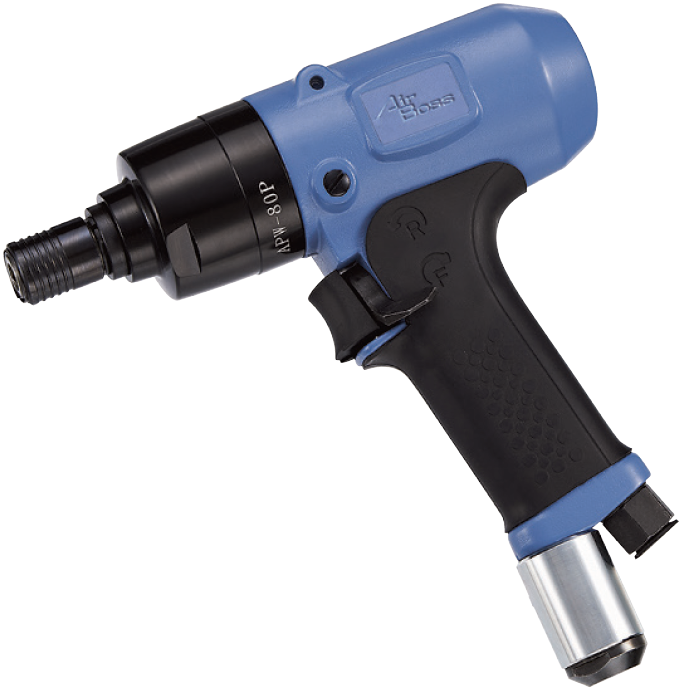

AIRBOSS® PW-80PR Non-Shut-Off Oil Pulse Tool
SKU PW-80PR-1/4
Type Oil Pulse Tool
Key Specifications
Performance and fit information for this exact model.
Working Torque Range & Specifications
Working torque varies by output configuration. Review the range for the exact drive or hex configuration below, then include that configuration in your quote request.
PW-80PR is an AIRBOSS pistol-type non shut-off air oil pulse / impulse tool for controlled fastening and assembly applications. Catalog-rated for standard 6.3 kg/cm² air pressure.
- Catalog model: PW-80PR
- Series: PW-R
- Mechanism: Oil Pulse
- Tool form: Pistol
- Shut-off type: Non shut-off
1/4 in Hex Screwdriver
- Store SKU: PW-80PR-1/4
- Bolt capacity: 8 mm
- Free speed: 6000 rpm
- Working Torque Range: 24-41 ft-lb / 32-56 N·m
- Air inlet: NPT 1/4 in
- Recommended air hose: 10 mm
- Air consumption: 0.54 m³/min
- Weight: 2.64 lb / 1.2 kg
- Overall length: 176 mm
- Air pressure: 6.3 kg/cm²
3/8 in Square Drive Wrench
- Store SKU: PW-80PR-3/8
- Bolt capacity: 10 mm
- Free speed: 6000 rpm
- Working Torque Range: 30-51 ft-lb / 40-70 N·m
- Air inlet: NPT 1/4 in
- Recommended air hose: 10 mm
- Air consumption: 0.54 m³/min
- Weight: 2.64 lb / 1.2 kg
- Overall length: 176 mm
- Air pressure: 6.3 kg/cm²
Store SKUs are normalized from the catalog model and output-drive configuration. Catalog suitable-torque ranges are reference values; actual fastening performance can vary by joint and application.
View all specifications 15 details
Performance
- Working Torque
- 24-41 ft-lb / 32-56 N·m
- Free Speed
- 6000 rpm
Tool & Capacity
- Output
- 1/4 in Hex Screwdriver / 3/8 in Square Drive Wrench
- Bolt Capacity
- 8 mm
- Mechanism
- Oil Pulse
- Model
- PW-80PR
- Product Type
- Oil Pulse Tool
- Shut-Off Type
- Non shut-off
- Tool Form
- Pistol
Air Requirements
- Air Inlet
- NPT 1/4 in
- Air Consumption
- 0.54 m³/min
- Air Pressure
- 6.3 kg/cm²
- Recommended Hose
- 10 mm
Dimensions
- Weight
- 2.64 lb / 1.2 kg
- Overall Length
- 176 mm

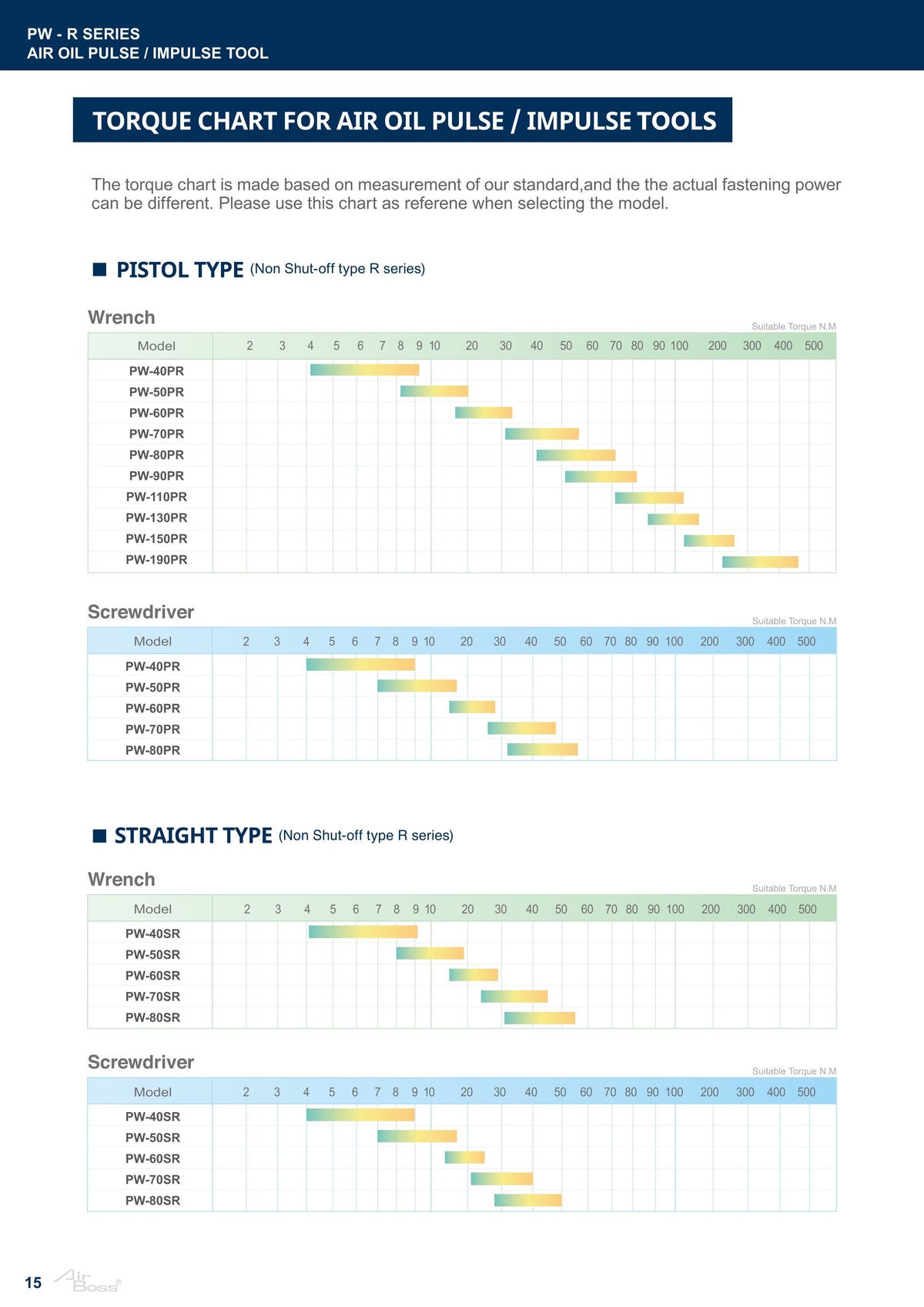

Catalog reference chart. Use the exact working torque range listed above for the selected drive or hex configuration.
Parts for PW-80PR-1/4
Open the model-specific exploded view to identify the part number, then contact us for availability.
