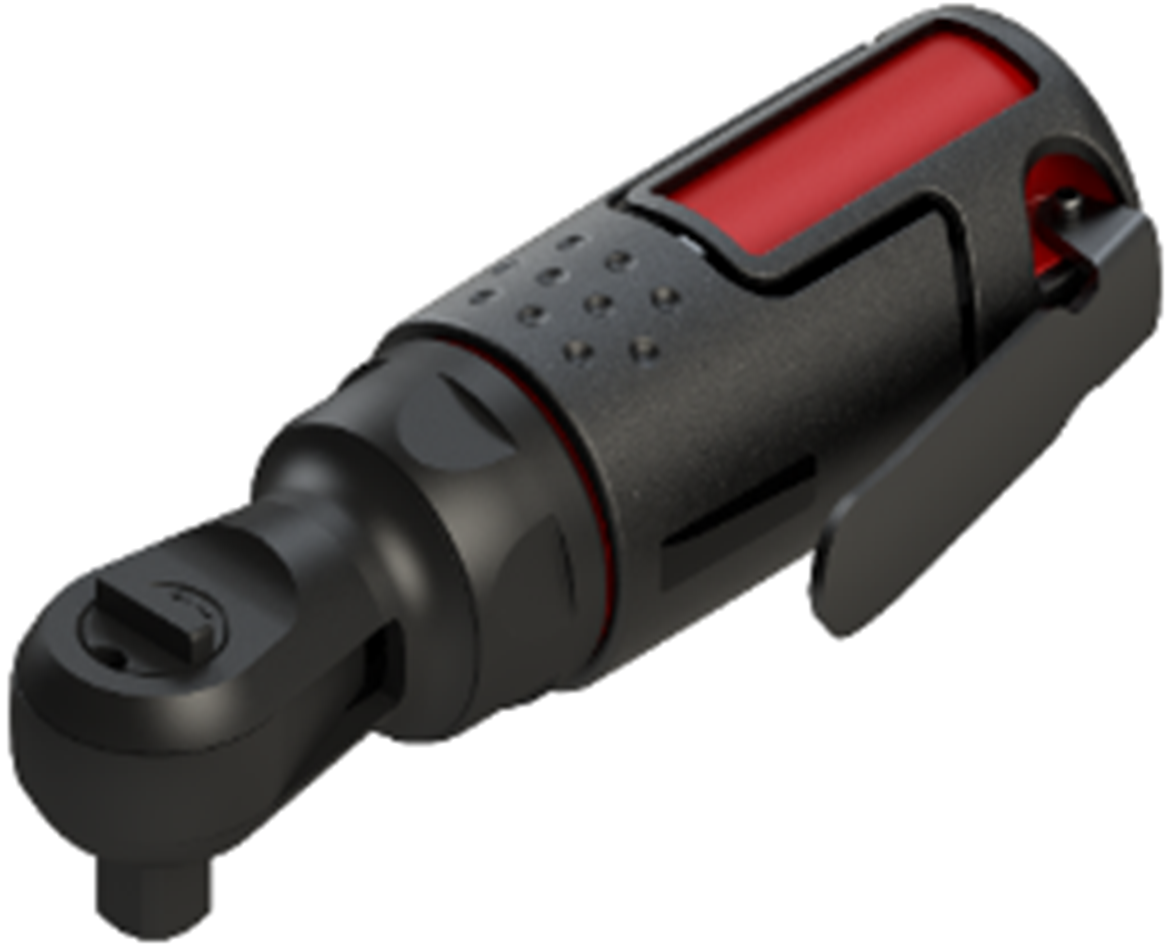

AIRBOSS® RW-113 1/4" Drive Mini Air Ratchet — 35 ft-lbs
SKU RW-113
Type Ratchet Wrench
Contact for Availability
Contact Us
At a glance
Key Specifications
Performance and fit information for this exact model.
Drive Size
1/4"
Max Torque
35 ft·lb
Free Speed
300 rpm
Bolt Capacity
1/4"
Weight
0.99 lb
Overall Length
134 mm
18-month limited warranty. See full warranty terms.
Product Details
Product Highlights
AIRBOSS 1/4-inch drive mini air ratchet — slim head and 300 RPM free speed for fastener work in tight engine-bay clearances where a hand ratchet is too slow and an impact wrench will not fit. Part of the AIRBOSS Auto Repair pneumatic tool line.
Specifications
- Drive: 1/4" square
- Max torque: 35 ft-lbs (47.5 N·m)
- Free speed: 300 RPM
- Bolt capacity: 1/4" (6 mm)
- Overall length: 5.3" (134 mm)
- Weight: 0.99 lbs (0.45 kg)
- Air consumption: 2.5 CFM
- Air inlet: 1/4" NPT
- Recommended hose: 3/8" (10 mm)
- Working pressure: 90 PSI
- RW-113 1/4" Air Ratchet Wrench.Mini
View all specifications 12 details
Performance
- Max Torque
- 35 ft·lb
- Free Speed
- 300 rpm
Tool & Capacity
- Drive Size
- 1/4"
- Bolt Capacity
- 1/4"
- Model
- RW-113
- Product Type
- Ratchet Wrench
Air Requirements
- Air Consumption
- 0.07 m³/min
- Air Inlet
- 1/4"
- Air Pressure
- 6.3 kg/cm²
- Recommended Hose
- 10 mm
Dimensions
- Weight
- 0.99 lb
- Overall Length
- 134 mm
Parts & Service
Parts for RW-113
Open the model-specific exploded view to identify the part number, then contact us for availability.
