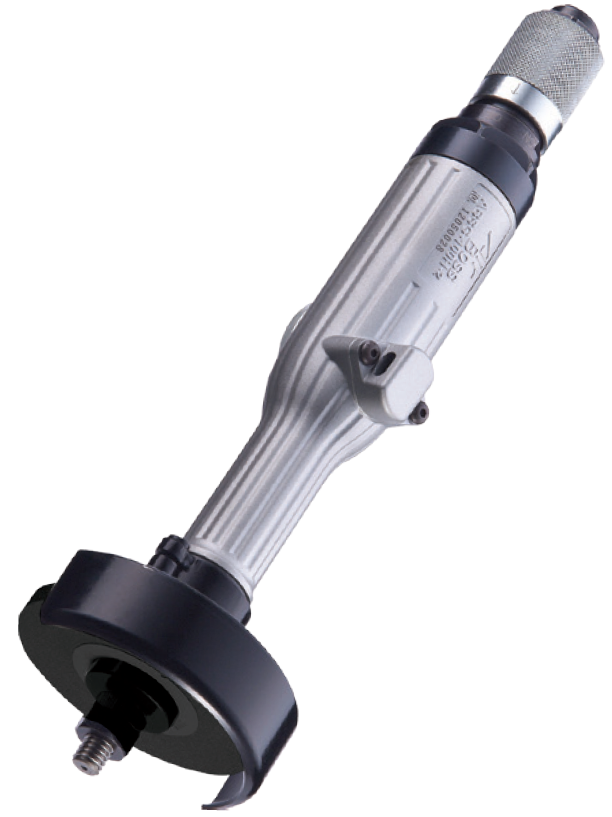

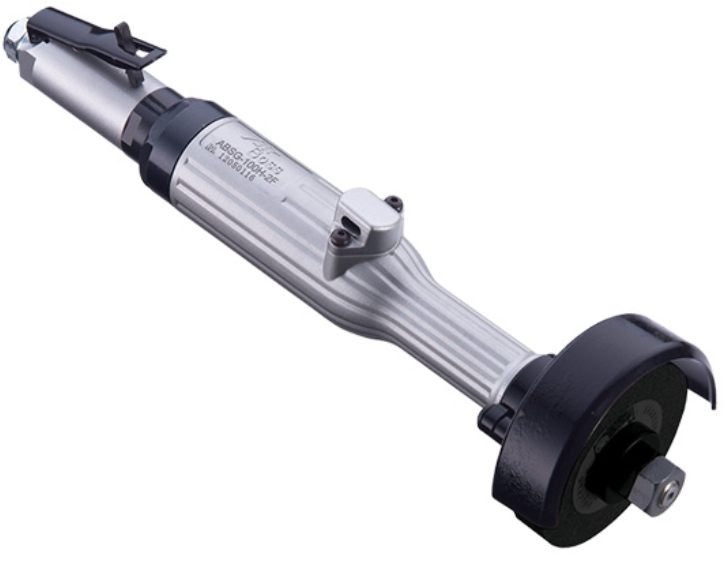

AIRBOSS® SG-100H Industrial Pneumatic Tool
SKU SG-100H
Type Air Straight Grinder
Email for Quote
Request a Quote
At a glance
Key Specifications
Performance and fit information for this exact model.
Wheel Capacity
4×3/4×1/2 in
Free Speed
9500 rpm
Power
0.94 hp
Spindle Thread
W1/2-12
18-month limited warranty. See full warranty terms.
Product Details
Product Highlights
AIRBOSS SG-100H is part of the industrial pneumatic tool catalog. Product photos are shown for model identification. Request a quote to confirm specifications, configuration, lead time, and pricing.
View all specifications 12 details
Performance
- Free Speed
- 9500 rpm
- Power
- 0.94 hp
Tool & Capacity
- Wheel Capacity
- 4×3/4×1/2 in
- Spindle Thread
- W1/2-12
- Model
- SG-100H
- Product Type
- Air Straight Grinder
Air Requirements
- Air Consumption
- 28.2 CFM
- Air Inlet
- 3/8"
- Air Pressure
- 6.3 kg/cm²
- Recommended Hose
- 1/2"
Dimensions
- Overall Length
- 16.3 in
- Weight
- 5.1 lb
Parts & Service
Parts for SG-100H
Open the model-specific exploded view to identify the part number, then contact us for availability.
