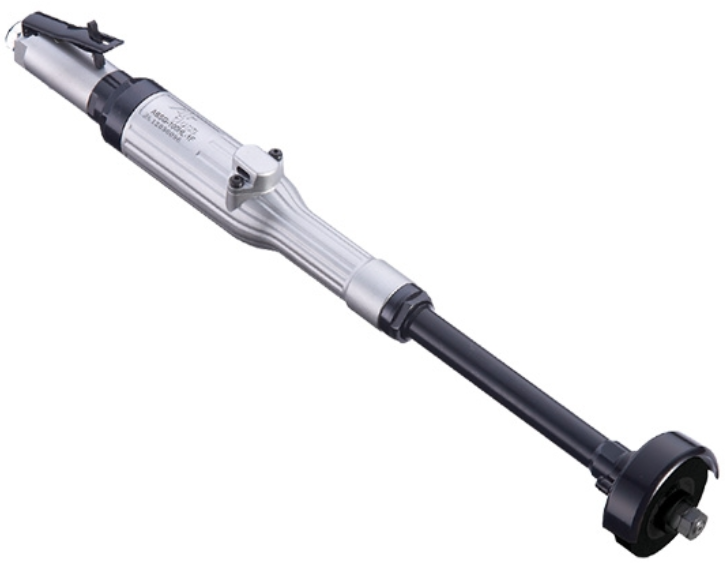

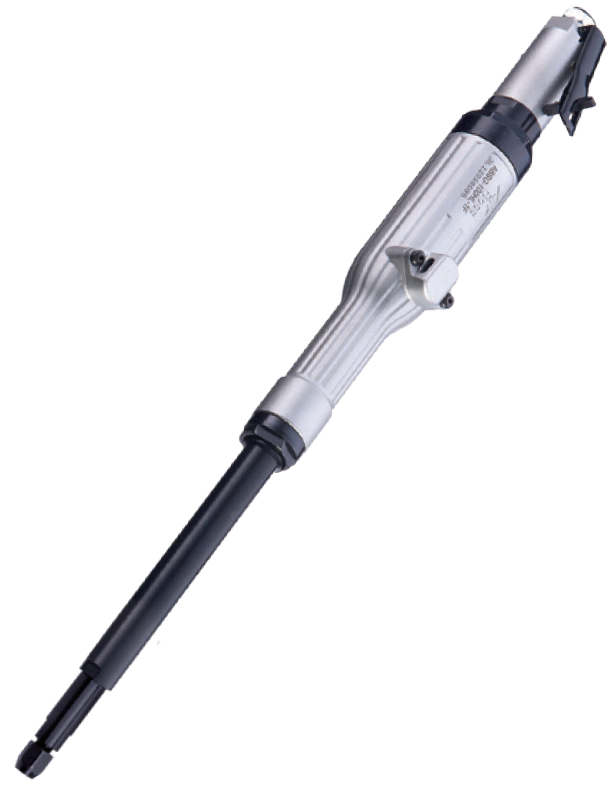

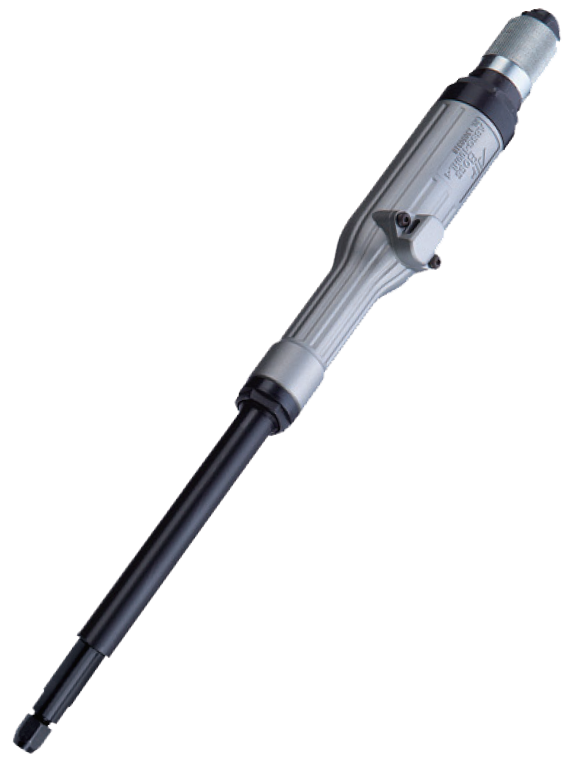

AIRBOSS® SG-100HAL Industrial Pneumatic Tool
SKU SG-100HAL
Type Air Straight Grinder
Email for Quote
Request a Quote
At a glance
Key Specifications
Performance and fit information for this exact model.
Collet Size
1/4" / 5/16"
Free Speed
12000 rpm
Power
0.9 hp
Spindle Thread
W3/8-16
18-month limited warranty. See full warranty terms.
Product Details
Product Highlights
AIRBOSS SG-100HAL is part of the industrial pneumatic tool catalog. Product photos are shown for model identification. Request a quote to confirm specifications, configuration, lead time, and pricing.
View all specifications 12 details
Performance
- Free Speed
- 12000 rpm
- Power
- 0.9 hp
Tool & Capacity
- Collet Size
- 1/4" / 5/16"
- Spindle Thread
- W3/8-16
- Model
- SG-100HAL
- Product Type
- Air Straight Grinder
Air Requirements
- Air Consumption
- 28.2 CFM
- Air Inlet
- 3/8"
- Air Pressure
- 6.3 kg/cm²
- Recommended Hose
- 1/2"
Dimensions
- Overall Length
- 24.19 in
- Weight
- 5.7 lb
Parts & Service
Parts for SG-100HAL
Open the model-specific exploded view to identify the part number, then contact us for availability.
